E Series

Catalog

FERRITE CORES & ACCESSORIES 1400NH 25% MNZN PC47 20X15.85X5MM

Part	Finish	Effective Length (le) mm [x]	Effective Magnetic Volume (Ve) mm³	Length	Length	Initial Permeability (µi)	Inductance Factor (Al)	Tolerance	Width [x]	Width [x]	Effective Area (Ae) mm²	Gap	Material	Core Factor (ΣI/A) mm⁻¹	Core Type	Core Factor (ΣI/A) mm⁻ą	Effective Area (Ae) mm˛	Effective Magnetic Volume (Ve) mmł	Effective Length (le) mm	Length [x]	Height [z]	Height [z]	Supplier Device Package	Effective Area (Ae) mm˛ [custom]	Height	Length [x]
TDK Corporation PC47EI19-Z	Uncoated	39.6 mm	950 mm³	20 mm	0.787 in	2500	1.4 µH	25 %	5 mm	0.197 in	24 mm²	Ungapped	PC47	1.65 mm⁻¹	E
TDK Corporation PC47EER35-Z	Uncoated		9720 mm³	35 mm			2.77 µH	25 %	11.3 mm	0.445 in	107 mm²	Ungapped	PC47	0.85 mm⁻¹	E	0.85 mm⁻ą	107 mm˛	9720 mmł	90.8 mm	1.378 "	0.815 in	20.7 mm	EER 35

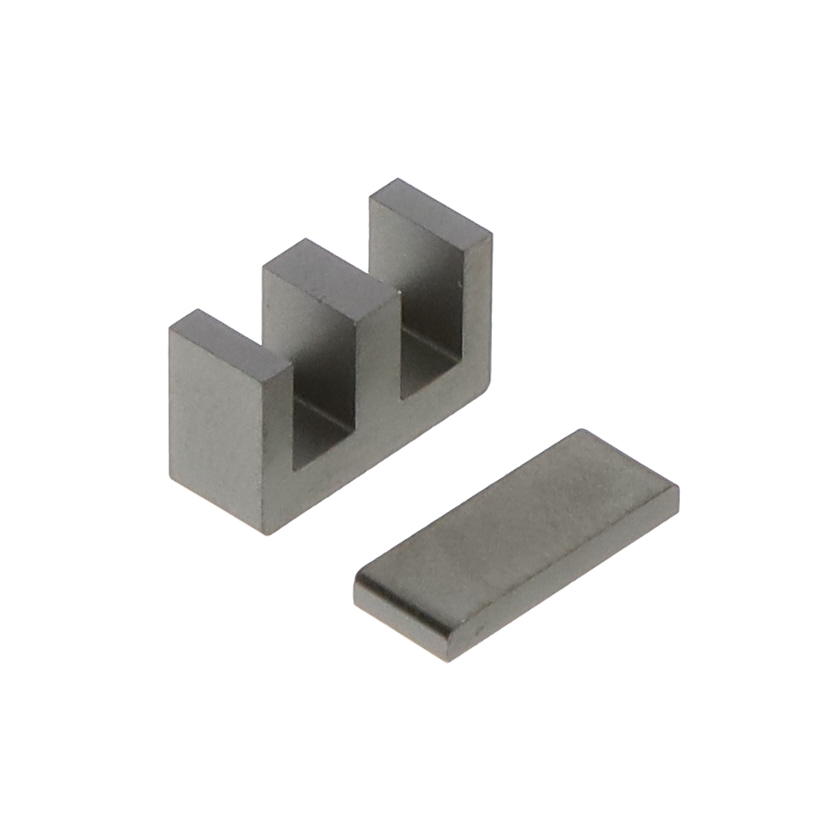

TDK Corporation PC47EI12.5-Z	Uncoated	21.3 mm	308 mm³			2500	1.2 µH	25 %			14.4 mm²	Ungapped	PC47	1.48 mm⁻¹	E	1.48 mm⁻ą		308 mmł		0.488 in	0.291 in			14.4 mm˛	7.4 mm	12.4 mm
