1002-003 Series
Manufacturer: CNC Tech
Beta
⌘K

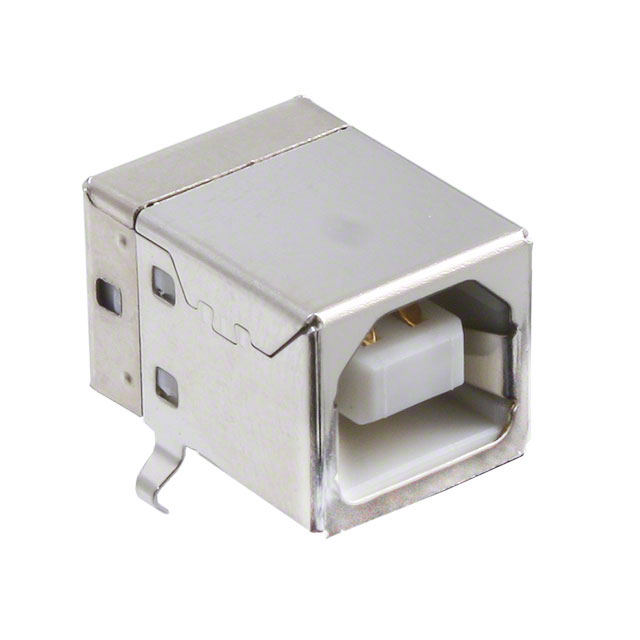

CONN USB 2.0 TYPE B RCP 4 POS 2MM SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT
| Part | Shell/Shielding Material | Material Flammability Rating | Number of Ports | Voltage - Rated | Specifications | Operating Temperature [Min] | Operating Temperature [Max] | Features | Current Rating (Amps) | Termination | Gender | Number of Contacts | Mating Cycles | Mounting Feature | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Steel | UL94 V-0 | 1 | 30 V | USB 2.0 | -55 C | 85 °C | Board Lock | 1.5 A | Solder | Receptacle | 4 | 1500 | Horizontal | USB-B (USB TYPE-B) | Right Angle Through Hole |
