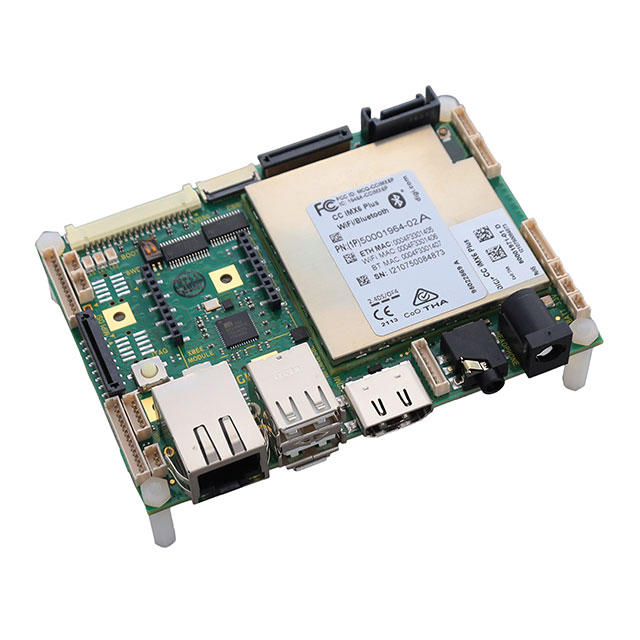

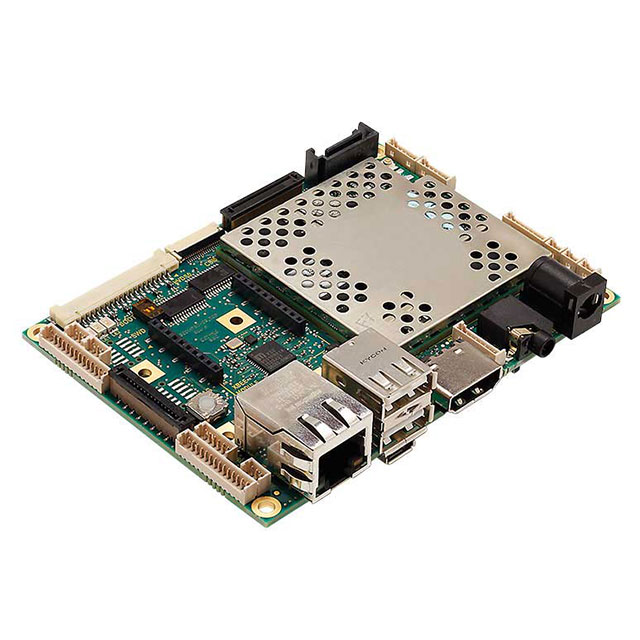

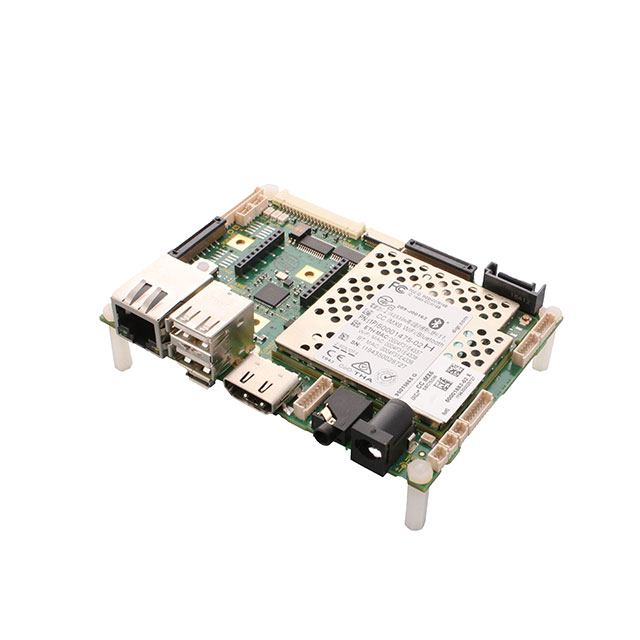

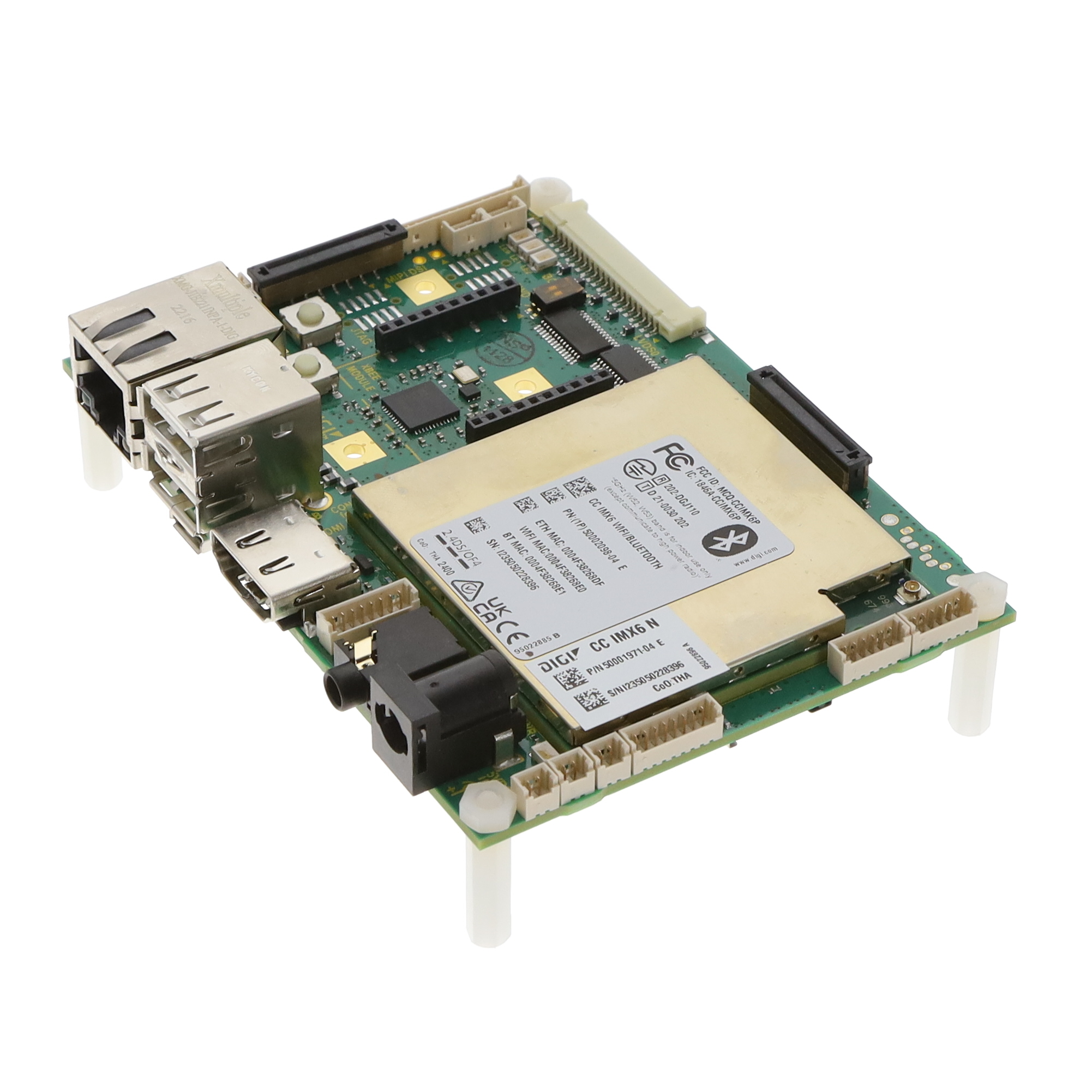

CC-SB-WMX Series
Manufacturer: Digi International
Beta
⌘K
SBC 1.2GHZ 4 CORE 2GB/- RAM
| Part | Number of Cores | Expansion Site/Bus | RS-232 (422, 485) [custom] | Digital I/O Lines | Speed | Storage Interface | Video Outputs | Form Factor | RAM Capacity/Installed | Core Processor | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | USB | Ethernet | Operating Temperature [Max] | Operating Temperature [Min] | Watchdog Timer | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Digi International | 4 | CAN Cellular I2C SPI Wi-Fi/Bluetooth XBee RF | 1 | 12 | 1.2 GHz | eMMC SATA SD | HDMI LCD LVDS MIPI-DSI | Pico-ITX | 2 GB | ARM Cortex-A9 i.MX6Quad | 100.07 mm | 2.83 in | 3.94 in | 71.88 mm | USB 2.0 (4) | GbE | 85 °C | -40 C | ||
 Digi International | 2 | Bluetooth Wi-Fi | 800 MHz | SBC | 0 GB 1 GB | i.MX 6Dual | 85 °C | -40 C | ||||||||||||
 Digi International | 4 | CAN Cellular I2C SPI Wi-Fi/Bluetooth XBee RF | 1 | 12 | 1.2 GHz | eMMC SATA SD | HDMI LCD LVDS MIPI-DSI | Pico-ITX | 0 GB 1 GB | ARM Cortex-A9 i.MX6Quad | 100.07 mm | 2.83 in | 3.94 in | 71.88 mm | USB 2.0 (4) | GbE | 70 °C | -20 ░C | SD Card | |
 Digi International | 2 | Cellular Wi-Fi/Bluetooth XBee RF | 1 | 12 | 800 MHz | eMMC/SD | HDMI LCD | Pico-ITX | ARM Cortex-A9 i.MX6DualLite | 100.07 mm | 2.83 in | 3.94 in | 71.88 mm | USB 2.0 (3) | GbE | 85 °C | -40 C | SD Card |
