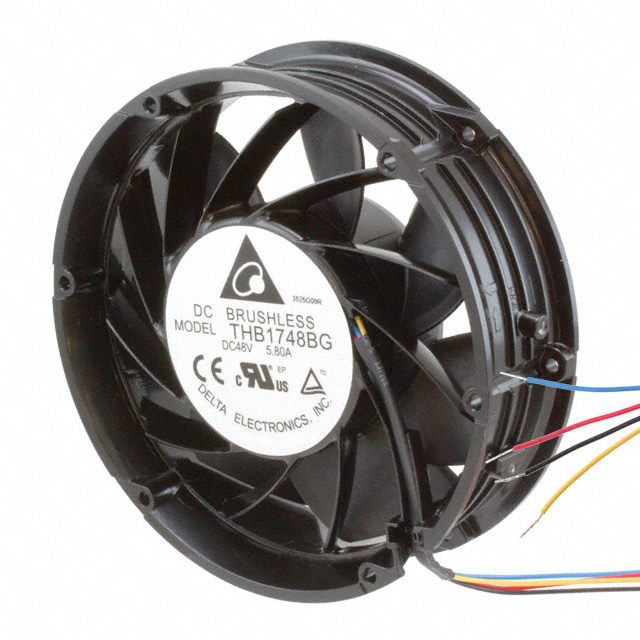

THB1748 Series
Manufacturer: Delta Electronics
Beta
⌘K
DC FAN AXIAL BALL BEARING 48V 36V TO 56V 607.07CFM 75DB 172 X 50.8MM
| Part | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Blade | Lifetime @ Temp. | Power (Watts) | Static Pressure | Static Pressure | Width [y] | Termination | Bearing Type | Voltage - Rated | Air Flow | Air Flow | Noise | Fan Type | Size / Dimension [diameter] | Size / Dimension | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Weight | Weight | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Aluminum | 36 VDC | 56 VDC | 3.5 A | Plastic | 70000 Hrs | 168 W | 1030.3 Pa | 4.136 in H2O | 50.8 mm | 4 Wire Leads | Ball | 48 VDC | 17 m³/min | 607 CFM | 75 dB(A) | Tubeaxial | 172 mm | Round | CE cURus TUV | 70 °C | -10 °C | 8000 RPM | 2.1 lb | 952.5 g | Locked Rotor Protection PWM Control Speed Sensor (Tach) |
