210 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

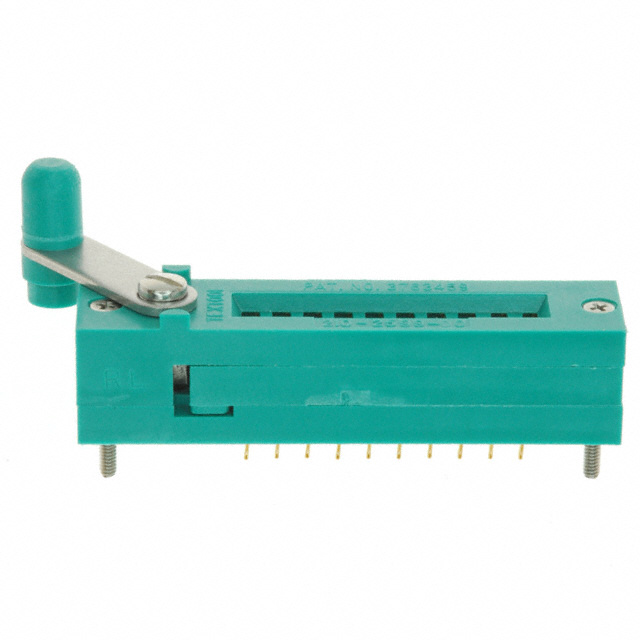

CONN ZIP SOCKET SKT 10 POS 2.54MM SOLDER ST THRU-HOLE BOX
| Part | Material Flammability Rating | Current Rating (Amps) | Termination Post Length | Termination Post Length | Mounting Type | Pitch - Post | Pitch - Post | Type | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material - Post | Pitch - Mating | Pitch - Mating | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | UL94 V-0 | 1 A | 3.3 mm | 0.13 in | Through Hole | 0.1 in | 2.54 mm | SIP ZIF (ZIP) | Gold | 30 µin | 0.76 µm | Polysulfone (PSU) Glass Filled | 0.76 Ám | 30 Áin | Gold | Beryllium Copper | -55 C | 125 °C | Solder | Beryllium Copper | 0.1 " | 2.54 mm | 1 | 10 | 10 |
 3M Electronic Specialty |
