R16616 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

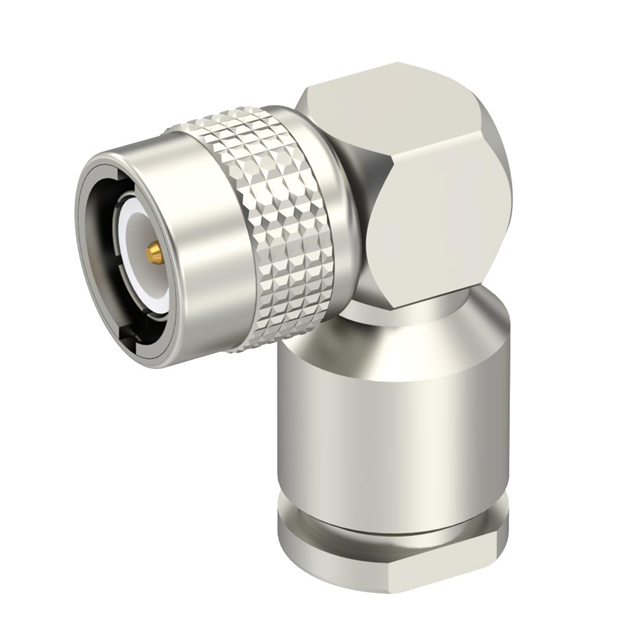

C / RIGHT ANGLE PLUG CLAMP TYPE
| Part | Center Contact Plating | Mating Cycles | Dielectric Material | Body Finish | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Frequency - Max [Max] | Impedance | Connector Type | Center Contact Material | Fastening Type | Mounting Type | Number of Ports | Shield Termination | Contact Termination | Cable Group | Connector Style | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 500 | Polytetrafluoroethylene (PTFE) | Nickel | Brass | 155 C | -55 C | 1000 VDC | 11 GHz | 50 Ohms | Plug Male Pin | Brass | Bayonet Lock | Free Hanging (In-Line) Right Angle | 1 | Clamp | Solder | 213 214 225 RG-165 | C Type | Silver |
