ICE2A0565 Series
Manufacturer: INFINEON
Beta
⌘K
IC OFFLINE SWITCH FLYBACK 7DIP
| Part | Control Features | Duty Cycle | Topology | Fault Protection | Voltage - Start Up | Package / Case | Package / Case | Package / Case | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage - Breakdown | Frequency - Switching | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Internal Switch(s) | Output Isolation | Package / Case [y] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Soft Start | 72 % | Flyback | Current Limiting Open Loop Over Load Over Temperature Over Voltage | 13.5 V | 7 Leads 8-DIP | 7.62 mm | 0.3 in | 23 Watts | -40 °C | 150 °C | Through Hole | 650 V | 100 kHz | PG-DIP-7-1 | 21 V | 8.5 V | Isolated | |||

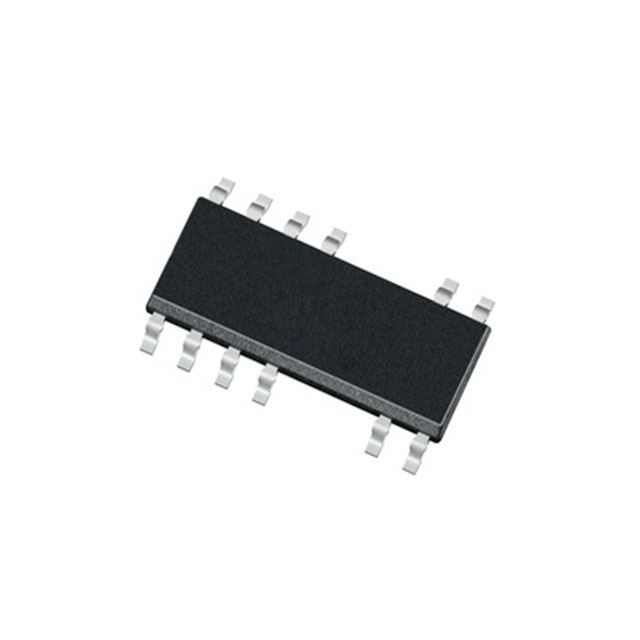

 INFINEON | Soft Start | 72 % | Flyback | Current Limiting Open Loop Over Load Over Temperature Over Voltage | 13.5 V | 12 Leads 16-SOIC | 23 Watts | -40 °C | 150 °C | Surface Mount | 650 V | 100 kHz | PG-DSO-12-10 | 21 V | 8.5 V | Isolated | 3.9 mm | 0.154 in |
