LFV10 Series

Catalog

LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [x]	Length - Termination [x]	Material - Insulation	Stud/Tab Size	Contact Material	Contact Finish	Terminal Type	Color	Features	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Insulation

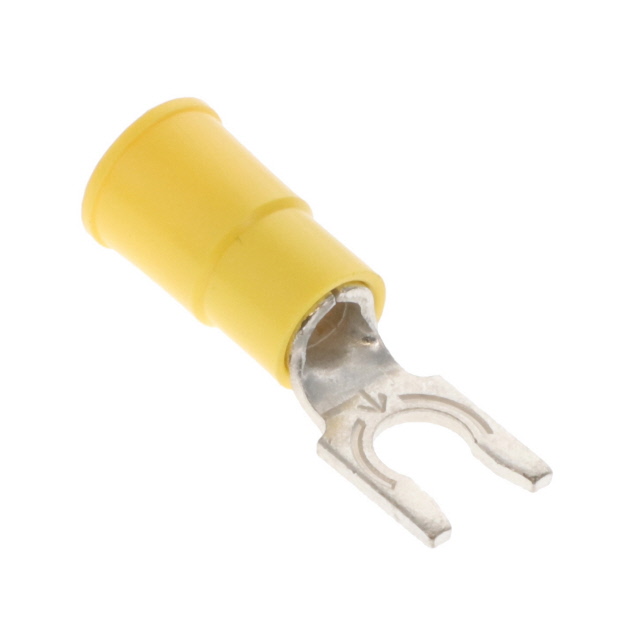

3M Electronic Specialty LFV10-10Q	6.35 mm	0.25 in	7.11 mm	0.28 in	0.55 in	13.97 mm	Vinyl	10 Stud	Copper ETP	Tin	Snap Spring	Yellow	Butted Seam	Crimp	10 AWG	12 AWG	0.32 in	8.13 mm	Free Hanging (In-Line)	26.16 mm	1.03 in	Insulated
3M Electronic Specialty LFV10-8Q	6.35 mm	0.25 in	7.11 mm	0.28 in	0.55 in	13.97 mm	Vinyl	8 Stud	Copper ETP	Tin	Snap Spring	Yellow	Butted Seam	Crimp	10 AWG	12 AWG	0.32 in	8.13 mm	Free Hanging (In-Line)	26.16 mm	1.03 in	Insulated
