8280-3SG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

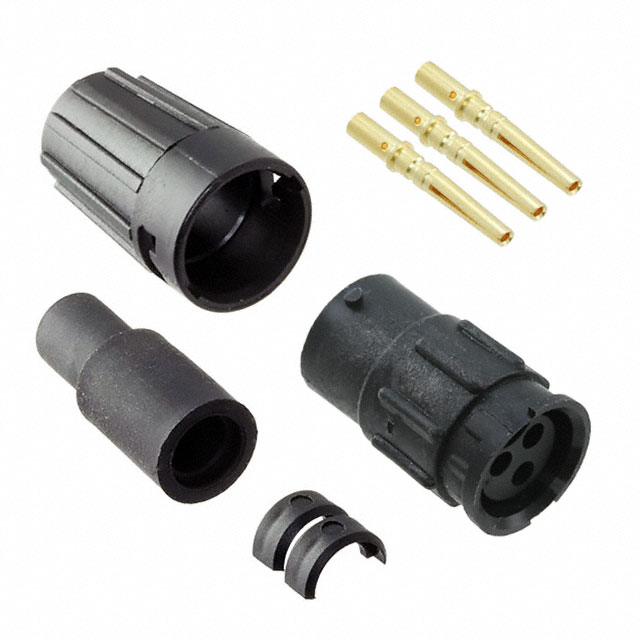

MINI-CON-X CABLE-TO-CABLE, 3-PIN #20, FEMALE, CRIMP, BULK
| Part | Backshell Material, Plating | Contact Finish - Mating | Mounting Type | Contact Material | Connector Type | Features | Applications | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Ingress Protection | Voltage Rating | Color | Orientation | Shielding | Termination | Primary Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Nylon Polyamide (PA) | Gold | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Backshell | Automotive Communication Systems Instrumentation | Varies by Wire Gauge | 115 °C | -40 C | Bayonet Lock | Weathertight | 600 V | Black | Keyed | Unshielded | Crimp | Plastic | |||||
 SWITCHCRAFT/CONXALL | Nylon Polyamide (PA) | Gold | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Backshell | Automotive Communication Systems Instrumentation | Varies by Wire Gauge | 115 °C | -40 C | Bayonet Lock | Weathertight | 600 V | Black | Keyed | Unshielded | Crimp | Plastic | 4.57 mm | 0.16 " | 0.18 " | 4.06 mm | |
SWITCHCRAFT/CONXALL | Nylon Polyamide (PA) | Gold | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Backshell | Automotive Communication Systems Instrumentation | Varies by Wire Gauge | 115 °C | -40 C | Bayonet Lock | Weathertight | 600 V | Black | Keyed | Unshielded | Crimp | Plastic | 5.84 mm | 0.21 in | 0.23 in | 5.33 mm | |
 SWITCHCRAFT/CONXALL | Nylon Polyamide (PA) | Gold | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Backshell | Automotive Communication Systems Instrumentation | Varies by Wire Gauge | 115 °C | -40 C | Bayonet Lock | Weathertight | 600 V | Black | Keyed | Unshielded | Crimp | Plastic | 6.35 mm | 0.22 in | 0.25 in | 5.59 mm | |
SWITCHCRAFT/CONXALL | Nylon Polyamide (PA) | Gold | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Backshell | Automotive Communication Systems Instrumentation | Varies by Wire Gauge | 115 °C | -40 C | Bayonet Lock | Weathertight | 600 V | Black | Keyed | Unshielded | Crimp | Plastic | 0.09 in | 0.14 in | 2.29 mm | 3.56 mm | |
SWITCHCRAFT/CONXALL | Nylon Polyamide (PA) | Gold | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | Backshell | Automotive Communication Systems Instrumentation | Varies by Wire Gauge | 115 °C | -40 C | Bayonet Lock | Weathertight | 600 V | Black | Keyed | Unshielded | Crimp | Plastic | 4.32 mm | 0.15 " | 0.17 in | 3.81 mm |
