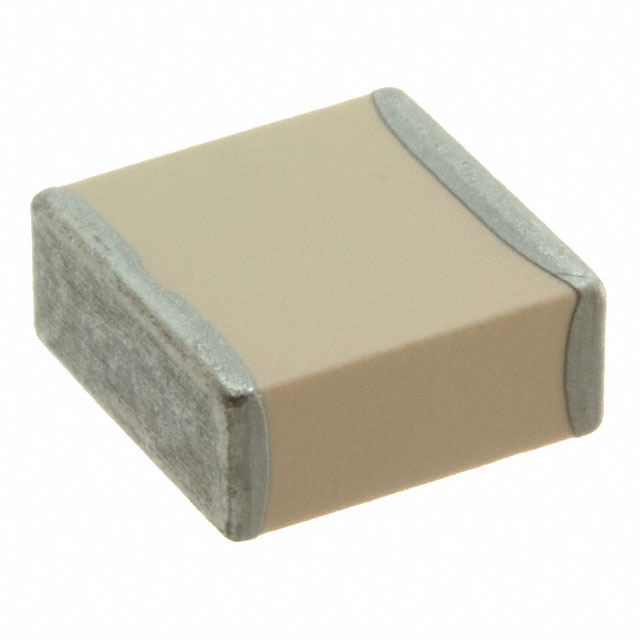

100E Series

Catalog

SILICON RF CAPACITORS / THIN FILM MLC C/E/H

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Rated	Voltage - Rated	Tolerance	Applications	Features	Capacitance	Thickness (Max)	Thickness (Max) [Max]
KYOCERA AVX 100E471JT2500XJ24	MLCC Surface Mount	-55 C	125 °C	P90	9797 Metric	3838	0.38 "	9.65 mm	0.38 "	9.65 mm	2.5 kV	2.5 kV	5 %	Bypass Decoupling High Frequency Microwave RF	High Q High Voltage Low ESL Low Loss	470 pF	4.32 mm	0.17 in
KYOCERA AVX 100E471JW2500XT	MLCC Surface Mount	-55 C	125 °C	P90	9797 Metric	3838	0.38 "	9.65 mm	0.38 "	9.65 mm	2.5 kV	2.5 kV	5 %	Bypass Decoupling High Frequency Microwave RF	High Q High Voltage Low ESL Low Loss	470 pF	4.32 mm	0.17 in
KYOCERA AVX 100E330JW3600XT	MLCC Surface Mount	-55 C	125 °C	P90	9797 Metric	3838	0.38 "	9.65 mm	0.38 "	9.65 mm	3600 V	3.6 kV	5 %	Bypass Decoupling High Frequency Microwave RF	High Q High Voltage Low ESL Low Loss	33 pF	4.32 mm	0.17 in
