IHSH36 Series
Manufacturer: APEM Inc.
Beta
⌘K

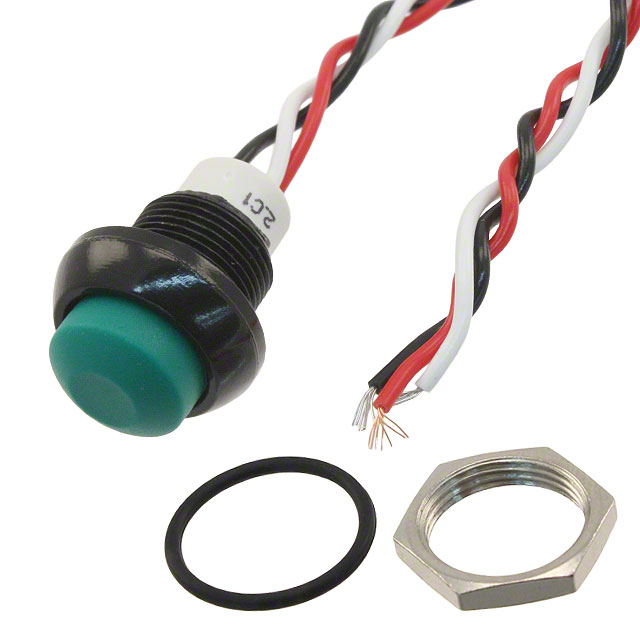

SWITCH PUSH HALL EFFECT 50MA 28V
| Part | Operating Force | Travel Range [custom] | Body Color | Switch Function | Termination Style | Voltage - Output (Max) [Max] | Ingress Protection | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Supply Voltage [Max] | Supply Voltage [Min] | Supply Current | Actuator Color | Current - Output (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | 612 gf | 1.7 mm | Black | Off-Mom | Wire Leads | 28 V | IP67 - Dust Tight Waterproof | Round Button | 85 °C | -40 C | Single | 24 VDC | 3.5 VDC | Varies by Supply Voltage | Blue | 50 mA | Panel Mount Front |
 APEM Inc. | 612 gf | 1.7 mm | Black | Off-Mom | Wire Leads | 28 V | IP67 - Dust Tight Waterproof | Round Button | 85 °C | -40 C | Single | 24 VDC | 3.5 VDC | Varies by Supply Voltage | Green | 50 mA | Panel Mount Front |
