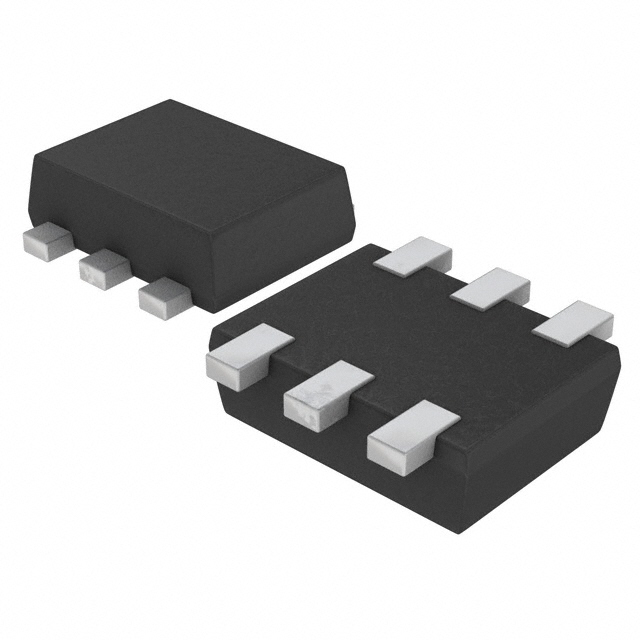

PNP+NPN, SOT-563, Driver Transistor
Description
AI
2SAR523 and 2SCR523 chips in one package.
Beta
⌘K
PNP+NPN, SOT-563, Driver Transistor
PNP+NPN, SOT-563, Driver Transistor
| Part | Package / Case | Supplier Device Package | Mounting Type | Voltage - Collector Emitter Breakdown (Max) [Max] | Frequency - Transition | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Current - Collector (Ic) (Max) [Max] | Vce Saturation (Max) @ Ib, Ic | Operating Temperature | Current - Collector Cutoff (Max) [Max] | Transistor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | SOT-563 SOT-666 | EMT6 | Surface Mount | 50 V | 300 MHz 350 MHz | 120 | 100 mA | 300 mV 400 mV | 150 °C | 100 nA | 1 NPN 1 PNP |
