SAV7 Series

Manufacturer: E-Switch

Catalog

PUSHBUTTON SWITCHES ANTI-VANDAL, SPDT, ON-ON, PANEL MOUNT, FRONT, SILVER, LED, WHITE, IP67

Part	Switch Function	Illumination Type, Color	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Type	Current Rating (Amps)	Ingress Protection	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color - Actuator/Cap	Circuit	Electrical Life	Actuator Marking	Mechanical Life
E-Switch SAV7F13SS305	On-On	LED White	24 V	22.2 mm	125 V	Anti-Vandal Illuminated	15 A	IP67 - Dust Tight Waterproof	Quick Connect	Button Flush Round	85 °C	-25 °C	Panel Mount Front	Silver	SPDT
E-Switch SAV7F1BSS341	On-Mom	Blue LED	3 VDC	22.2 mm	125 V	Anti-Vandal Illuminated	15 A	IP67 - Dust Tight Waterproof	Quick Connect	Button Flush Round	85 °C	-25 °C	Panel Mount Front	Silver	SPDT	10000 Cycles	No Marking
E-Switch SAV7F13SS645	On-On	Blue LED	24 V	22 mm	125 V	Anti-Vandal Illuminated	15 A	IP67 - Dust Tight Waterproof	Quick Connect	Button Flush Round	85 °C	-25 °C	Panel Mount Front	Silver	SPDT
E-Switch SAV7F13SS637	On-On	Green LED	220 VAC	22.2 mm	125 V	Anti-Vandal Illuminated	15 A	IP67 - Dust Tight Waterproof	Quick Connect	Button Flush Round	85 °C	-25 °C	Panel Mount Front	Silver	SPDT	10000 Cycles		1000000 Cycles

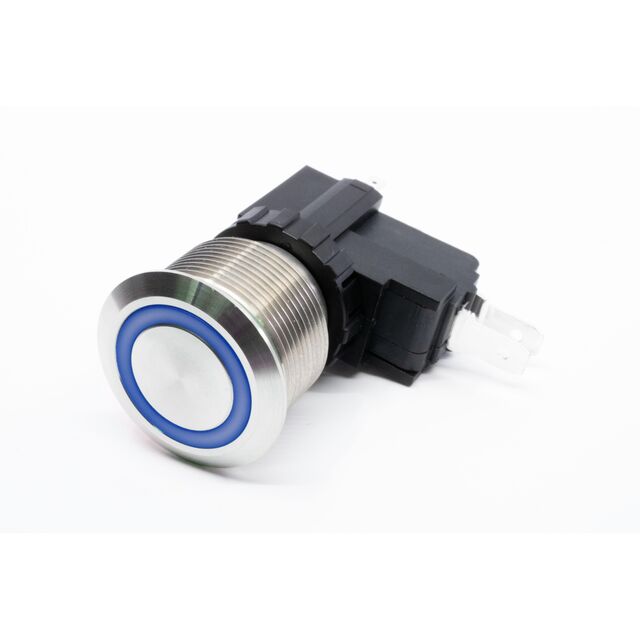

E-Switch SAV7F13SS346	On-On	Blue LED	110 VAC	22 mm	125 V	Anti-Vandal Illuminated	15 A	IP67 - Dust Tight Waterproof	Quick Connect	Button Flush Round	85 °C	-25 °C	Panel Mount Front	Silver	SPDT	10000 Cycles

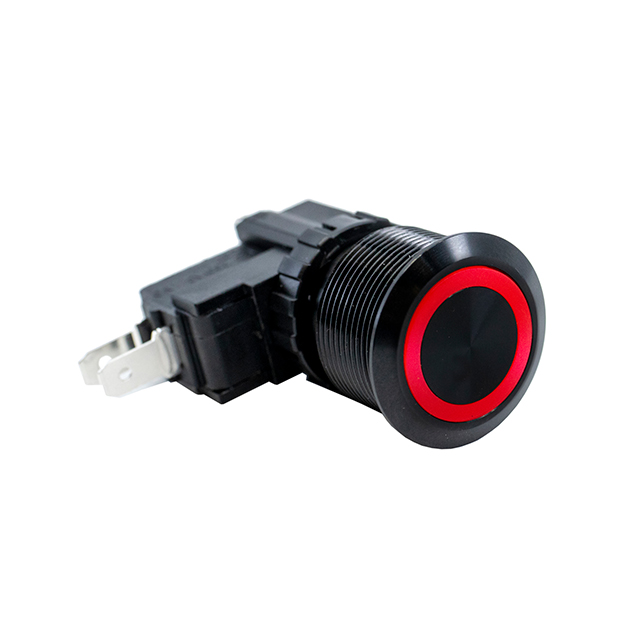

E-Switch SAV7F1311311	On-On	LED Red	3 VDC	22.2 mm	125 V	Anti-Vandal Illuminated	15 A	IP67 - Dust Tight Waterproof	Quick Connect	Button Flush Round	85 °C	-25 °C	Panel Mount Front	Black	SPDT	10000 Cycles	No Marking

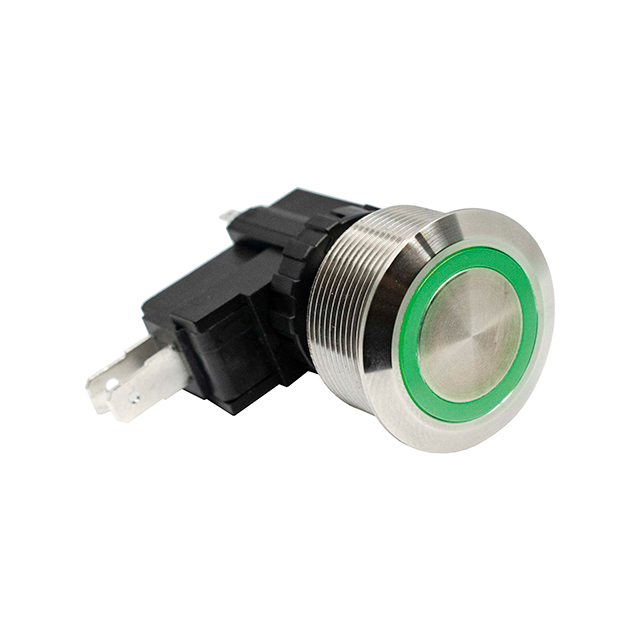

E-Switch SAV7F1BSS331	On-Mom	Green LED	3 VDC	22.2 mm	125 V	Anti-Vandal Illuminated	15 A	IP67 - Dust Tight Waterproof	Quick Connect	Button Flush Round	85 °C	-25 °C	Panel Mount Front	Silver	SPDT	10000 Cycles	No Marking
