MMI-P1SR Series
Manufacturer: Adam Tech
Beta
⌘K
CONN RCPT FMALE 6POS GOLD SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Orientation [custom] | Mounting Type | Insert Material | Current Rating (Amps) | Mounting Feature | Voltage Rating | Shielding | Color | Contact Material | Primary Material | Contact Finish - Mating | Ingress Protection | Termination | Shell Material | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

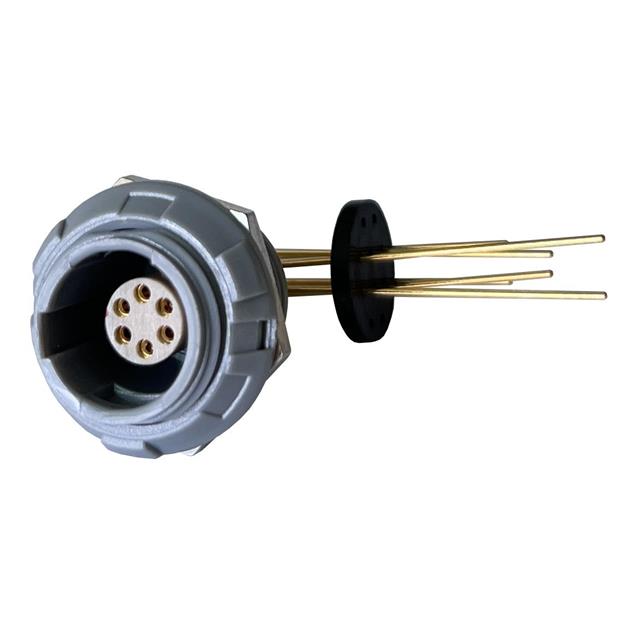

 Adam Tech | -55 C | 118 °C | 6 | G | Panel Mount Right Angle Through Hole | Polyphenylene Sulfide (PPS) | 8 A | Bulkhead - Rear Side Nut | 200 V | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Solder | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets |

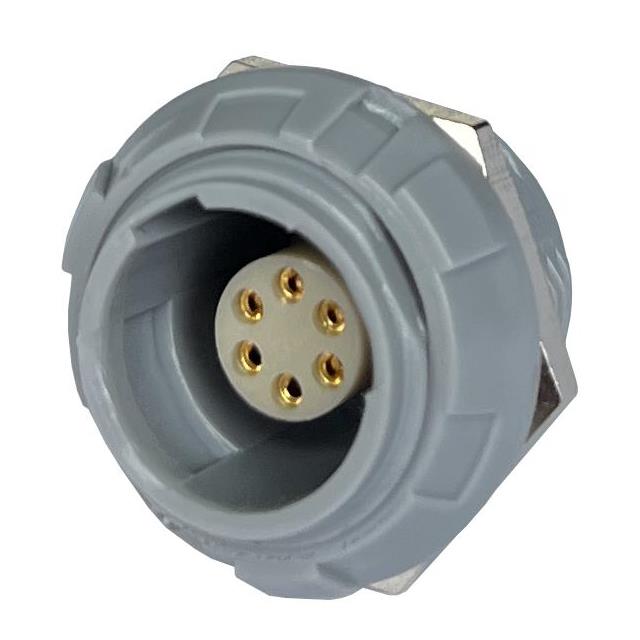

 Adam Tech | -55 C | 118 °C | 6 | G | Panel Mount | Polyphenylene Sulfide (PPS) | 8 A | Bulkhead - Rear Side Nut | 200 V | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets | |

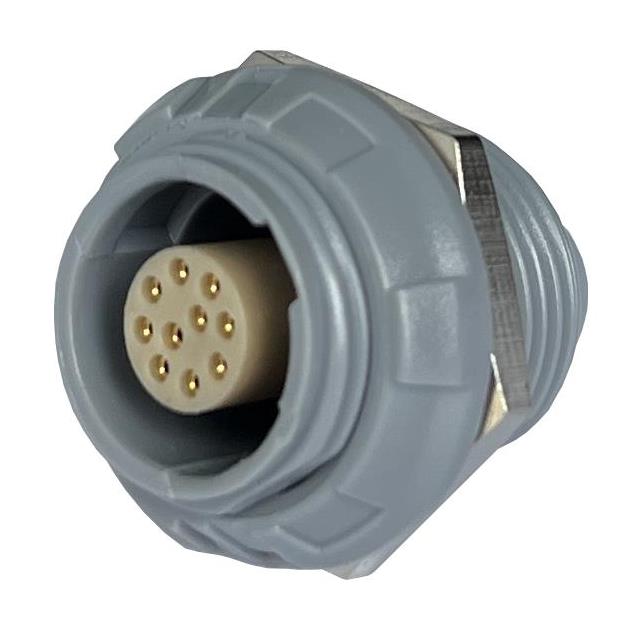

 Adam Tech | -55 C | 118 °C | 10 | G | Panel Mount | Polyphenylene Sulfide (PPS) | 4 A | Bulkhead - Rear Side Nut | 200 V | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets | |
 Adam Tech | -55 C | 118 °C | G | Panel Mount Through Hole | Polyphenylene Sulfide (PPS) | 12 Amps | Bulkhead - Rear Side Nut | 300 VDC | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Solder | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets | |

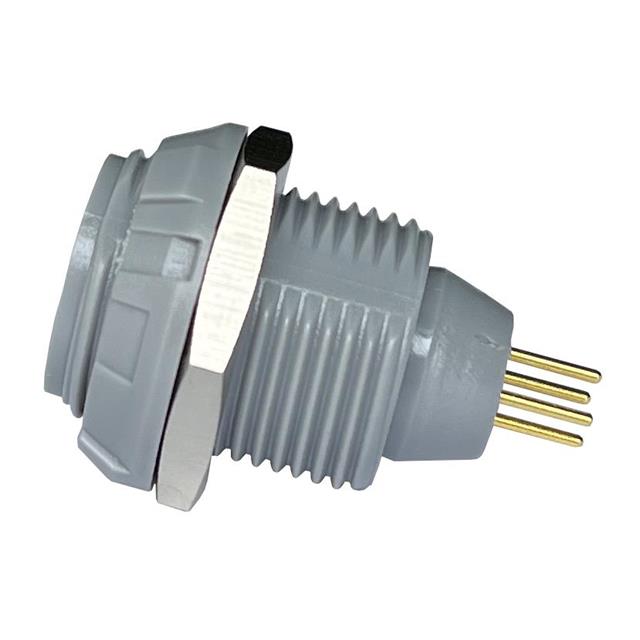

 Adam Tech | -55 C | 118 °C | 4 | G | Panel Mount Through Hole | Polyphenylene Sulfide (PPS) | 10 A | Bulkhead - Rear Side Nut | 250 V | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Solder | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets |

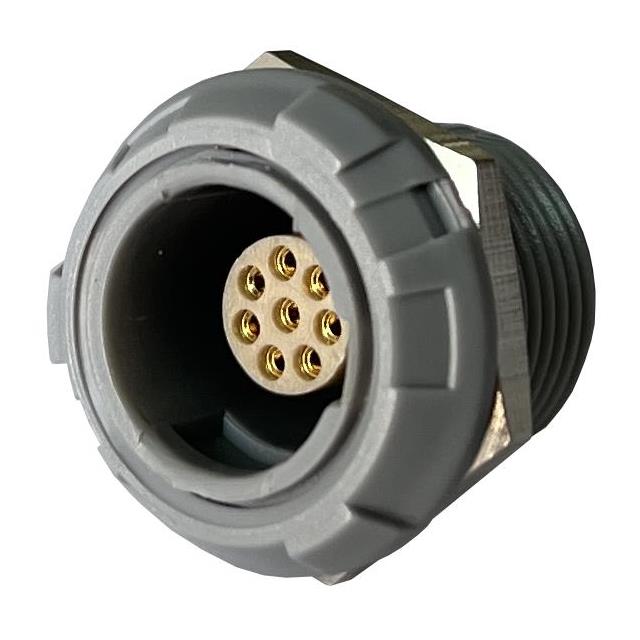

 Adam Tech | -55 C | 118 °C | 8 | G | Panel Mount Through Hole | Polyphenylene Sulfide (PPS) | 6 A | Bulkhead - Rear Side Nut | 200 V | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Solder | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets |
 Adam Tech | -55 C | 118 °C | 5 | G | Panel Mount | Polyphenylene Sulfide (PPS) | 9 A | Bulkhead - Rear Side Nut | 250 V | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets | |
 Adam Tech | -55 C | 118 °C | 6 | G | Panel Mount Through Hole | Polyphenylene Sulfide (PPS) | 8 A | Bulkhead - Rear Side Nut | 200 V | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Solder | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets |
 Adam Tech | -55 C | 118 °C | G | Panel Mount Right Angle Through Hole | Polyphenylene Sulfide (PPS) | 12 Amps | Bulkhead - Rear Side Nut | 300 VDC | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Solder | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets | |

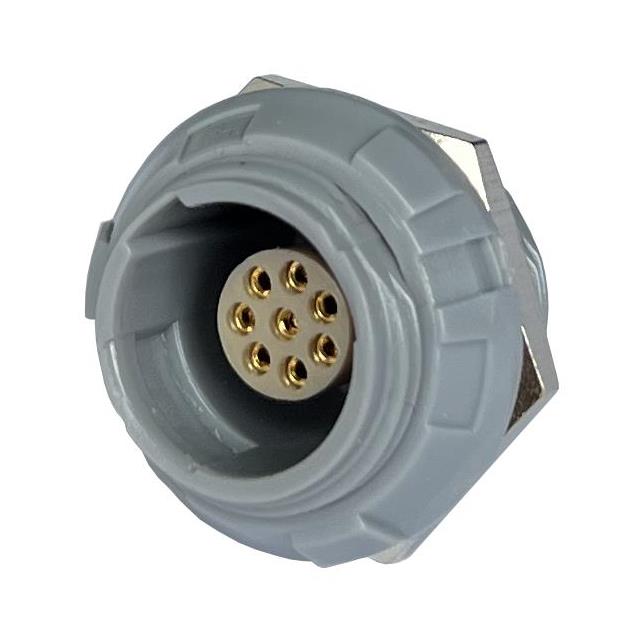

 Adam Tech | -55 C | 118 °C | 8 | G | Panel Mount | Polyphenylene Sulfide (PPS) | 6 A | Bulkhead - Rear Side Nut | 200 V | Unshielded | Gray | Brass | Plastic | Gold | IP50 - Dust Protected | Polycarbonate (PC) | Push-Pull | Receptacle Female Sockets |
