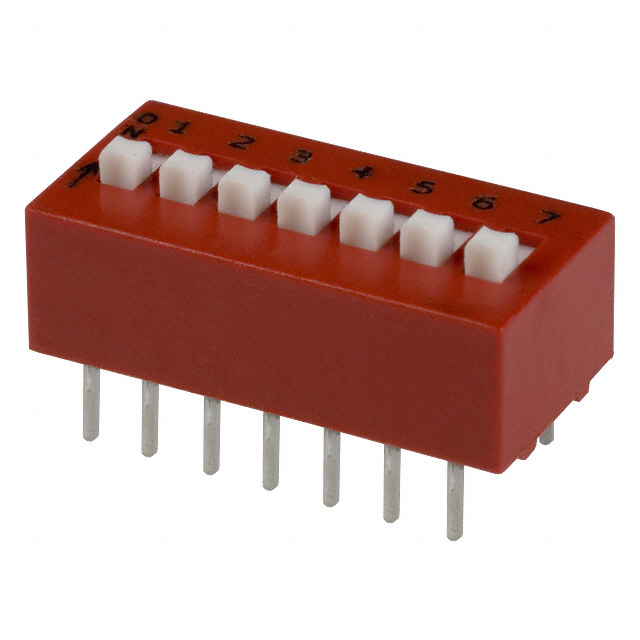

78B07 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP SPST 0.15A 30V
| Part | Electrical Life | Body Material | Mechanical Life | Voltage Rating | Contact Material | Washable | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Mounting Type | Actuator Level | Pitch | Pitch | Circuit | Contact Finish | Termination Style | Height Above Board [z] | Height Above Board [z] | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 2000 Steps | Thermoplastic | 2000 Cycles | 30 VDC | Copper Alloy | 85 °C | -40 C | 7 | Through Hole | Raised | 2.54 mm | 0.1 " | SPST | Gold | PC Pin | 0.315 in | 8 mm | Slide (Standard) |
