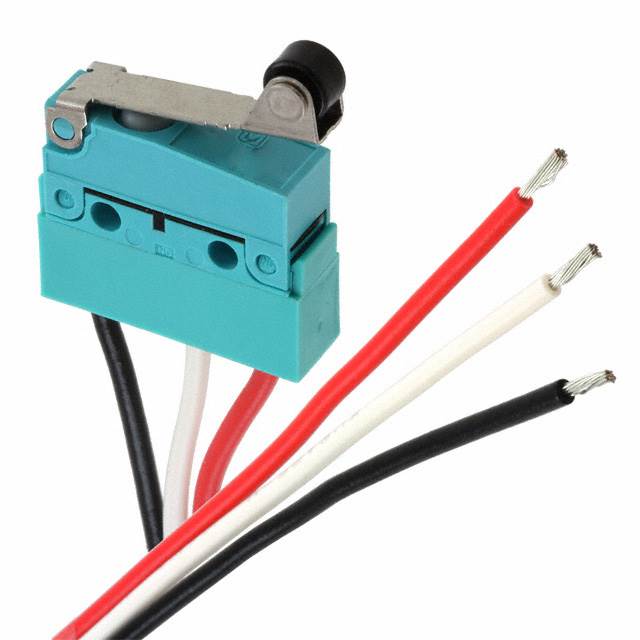

ABS161 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACT SPDT 0.1A 125V

Part	Voltage Rating - AC	Ingress Protection	Current Rating (Amps)	Termination Style	Circuit	Operating Force	Switch Function	Mechanical Life	Differential Travel	Differential Travel	Release Force	Electrical Life	Overtravel	Overtravel	Voltage Rating - DC	Operating Position	Operating Position	Mounting Type	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Overtravel [custom]	Overtravel [custom]
Panasonic Electronic Components ABS1612519	125 V	IP67 - Dust Tight Waterproof	100 mA	Wire Leads	SPDT	55 gf	On-Mom	5000000 Cycles	0.031 in	0.8 mm	3.5 gf	200000 Cycles	1.2 mm	0.047 "	30 V	0.345 in	8.8 mm	Chassis Mount	0.11 in	2.8 mm	85 °C	-40 C	Lever Straight
Panasonic Electronic Components ABS1610509	125 V	IP67 - Dust Tight Waterproof	2 A	Wire Leads	SPDT	150 gf	On-Mom	5000000 Cycles	0.004 in	0.1 mm	20 gf	50000 Cycles			30 V	0.33 in	8.4 mm	Chassis Mount	0.024 in	0.6 mm	85 °C	-40 C	Round (Pin Plunger)	0.015 "	0.4 mm
Panasonic Electronic Components ABS1613409	125 V	IP67 - Dust Tight Waterproof	2 A	Wire Leads	SPDT		On-Mom	5000000 Cycles	0.04 in	1 mm	2.5 gf	50000 Cycles			30 V	0.345 in	8.8 mm	Chassis Mount	0.138 in	3.5 mm	85 °C	-40 C	Lever Straight	0.062 "	1.6 mm
Panasonic Electronic Components ABS1614509	125 V	IP67 - Dust Tight Waterproof	2 A	Wire Leads	SPDT	55 gf	On-Mom	5000000 Cycles	0.031 in	0.8 mm	3.5 gf	50000 Cycles	1.2 mm	0.047 "	30 V	0.46 in	11.7 mm	Chassis Mount	0.11 in	2.8 mm	85 °C	-40 C	Lever Simulated Roller
Panasonic Electronic Components ABS1616419	125 V	IP67 - Dust Tight Waterproof	100 mA	Wire Leads	SPDT	40 gf	On-Mom	5000000 Cycles	0.02 in	0.5 mm	3.5 gf	200000 Cycles			30 V	0.571 in	14.5 mm	Chassis Mount	0.1 in	2.5 mm	85 °C	-40 C	Lever Roller	0.032 "	0.81 mm
Panasonic Electronic Components ABS161640	125 V	IP67 - Dust Tight Waterproof	2 A	Wire Leads	SPDT	40 gf	On-Mom	5000000 Cycles	0.02 in	0.5 mm	3.5 gf	50000 Cycles			30 V	0.571 in	14.5 mm	Chassis Mount	0.1 in	2.5 mm	85 °C	-40 C	Lever Roller	0.032 "	0.81 mm
Panasonic Electronic Components ABS1613419	125 V	IP67 - Dust Tight Waterproof	100 mA	Wire Leads	SPDT		On-Mom	5000000 Cycles	0.04 in	1 mm	2.5 gf	200000 Cycles			30 V	0.345 in	8.8 mm	Chassis Mount	0.138 in	3.5 mm	85 °C	-40 C	Lever Straight	0.062 "	1.6 mm
Panasonic Electronic Components ABS1613509	125 V	IP67 - Dust Tight Waterproof	2 A	Wire Leads	SPDT		On-Mom	5000000 Cycles	0.04 in	1 mm	3.059 gf	50000 Cycles			30 V	0.345 in	8.8 mm	Chassis Mount	0.138 in	3.5 mm	85 °C	-40 C	Lever Straight	0.062 "	1.6 mm
Panasonic Electronic Components ABS1610519	125 V	IP67 - Dust Tight Waterproof	100 mA	Wire Leads	SPDT	150 gf	On-Mom	5000000 Cycles	0.004 in	0.1 mm	20 gf	200000 Cycles			30 V	0.33 in	8.4 mm	Chassis Mount	0.024 in	0.6 mm	85 °C	-40 C	Round (Pin Plunger)	0.015 "	0.4 mm
