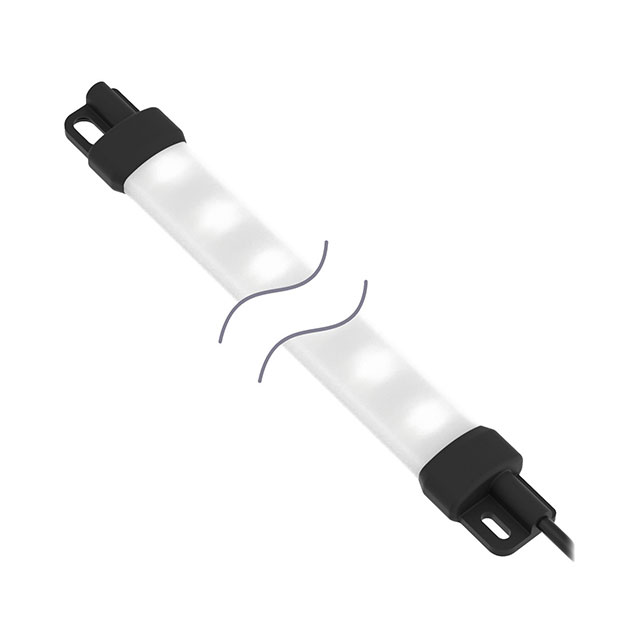

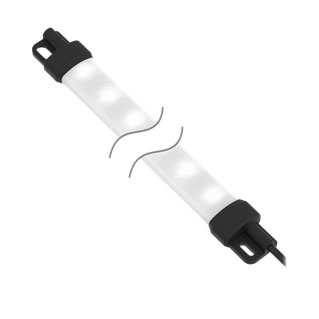

WLS15XGR Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
DUAL COLOR LIGHT STRIP 640MM
| Part | Termination Style | Length | Length | Voltage - Supply [Max] | Voltage - Supply [Min] | Profile (W x H) [y] | Profile (W x H) [x] | Profile (W x H) [x] | Profile (W x H) [y] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Illumination Color | Housing Material | Approval Agency | Luminous Flux [custom] | Luminous Flux [custom] | Lens Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | Cable with Connector (M12) | 640 mm | 25.2 in | 24 V | 12 VDC | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 60 °C | -40 C | IP66 IP67 | Green Red | Aluminum (Al) | CE cULus | 220 lm | 420 lm | Diffused Flat | ||
 BANNER ENGINEERING | Cable with Connector (M12) | 220 mm | 8.66 in | 24 V | 12 VDC | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 60 °C | -40 C | IP66 IP67 | Green Red | Aluminum (Al) | CE cULus | 55 lm | 105 lm | Diffused Flat | ||
BANNER ENGINEERING | Cable with Connector (M12) | 50 cm | 19.69 in | 24 V | 12 VDC | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 60 °C | -40 C | IP66 IP67 | Green Red | Aluminum (Al) | CE cULus | 165 lm | 315 lm | Diffused Flat | ||
BANNER ENGINEERING | Cable with Connector (M12) | 24 V | 12 VDC | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 60 °C | -40 C | IP66 IP67 | Green Red | Aluminum (Al) | CE cULus | 330 lm | 630 lm | Diffused Flat | 36.22 in | 920 mm | ||
BANNER ENGINEERING | Cable with Connector (M12) | 24 V | 12 VDC | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 60 °C | -40 C | IP66 IP67 | Green Red | Aluminum (Al) | CE cULus | 110 lm | 210 lm | Diffused Flat | 14.17 in | 360 mm | ||
BANNER ENGINEERING | Cable with Connector (M12) | 1200 mm | 47.24 in | 24 V | 12 VDC | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 60 °C | -40 C | IP66 IP67 | Green Red | Aluminum (Al) | CE cULus | Diffused Flat |
