Pts8400 Series Series

Microminiature SMT Side Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Microminiature SMT Side Actuated

Part	Switch Function	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Outline [x]	Outline [y]	Operating Force	Switch Travel	Contact Rating @ Voltage	Illumination	Mechanical Life	Circuit	Actuator Type	Features	Termination Style
Littelfuse/Commercial Vehicle Products PTS840 ESD GK SMTR LFS	Off-Mom	Surface Mount Right Angle	85 °C	-40 °C	Side Actuated	4.7 mm	2.9 mm	220 gf	0.2 mm	0.05 A 12 VDC	Non-Illuminated	100000 Cycles	SPST-NO	Rectangular Button	Grounding Pin	Gull Wing
Littelfuse/Commercial Vehicle Products PTS840 ESD GM SMTR LFS	Off-Mom	Surface Mount Right Angle	85 °C	-40 °C	Side Actuated	4.7 mm	2.9 mm		0.2 mm	0.05 A 12 VDC	Non-Illuminated	100000 Cycles	SPST-NO	Rectangular Button	Grounding Pin	Gull Wing
Littelfuse/Commercial Vehicle Products PTS840 PK SMTR LFS	Off-Mom	Surface Mount Right Angle	85 °C	-40 °C	Side Actuated	4.7 mm	2.9 mm	220 gf	0.2 mm	0.05 A 12 VDC	Non-Illuminated	100000 Cycles	SPST-NO	Rectangular Button	PIP Leads	Gull Wing
Littelfuse/Commercial Vehicle Products PTS840 GMP SMTR LFS	Off-Mom	Surface Mount Right Angle	85 °C	-40 °C	Side Actuated	4.7 mm	2.9 mm		0.2 mm	0.05 A 12 VDC	Non-Illuminated	100000 Cycles	SPST-NO	Rectangular Button	Board Guide	Gull Wing
Littelfuse/Commercial Vehicle Products PTS840 ESD GMP SMTR LFS	Off-Mom	Surface Mount Right Angle	85 °C	-40 °C	Side Actuated	4.7 mm	2.9 mm		0.2 mm	0.05 A 12 VDC	Non-Illuminated	100000 Cycles	SPST-NO	Rectangular Button	Board Guide Grounding Pin	Gull Wing

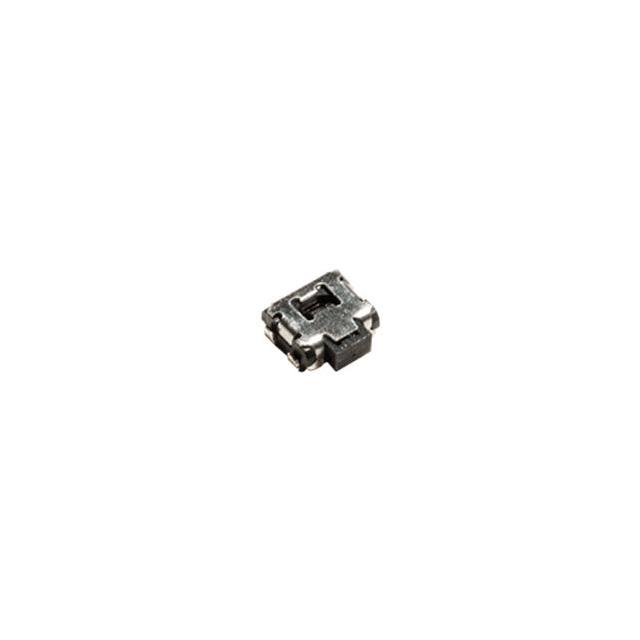

Littelfuse/Commercial Vehicle Products PTS840ESDPKSMTRLFS
Littelfuse/Commercial Vehicle Products PTS840 GK SMTR LFS	Off-Mom	Surface Mount Right Angle	85 °C	-40 °C	Side Actuated	4.7 mm	2.9 mm	220 gf	0.2 mm	0.05 A 12 VDC	Non-Illuminated	100000 Cycles	SPST-NO	Rectangular Button		Gull Wing

Catalog

Microminiature SMT Side Actuated

Key Features

• Front PIP leads option for strong shear resistance

• 3.5 x 3.55 mm footprint

• Reduced footprint

Description

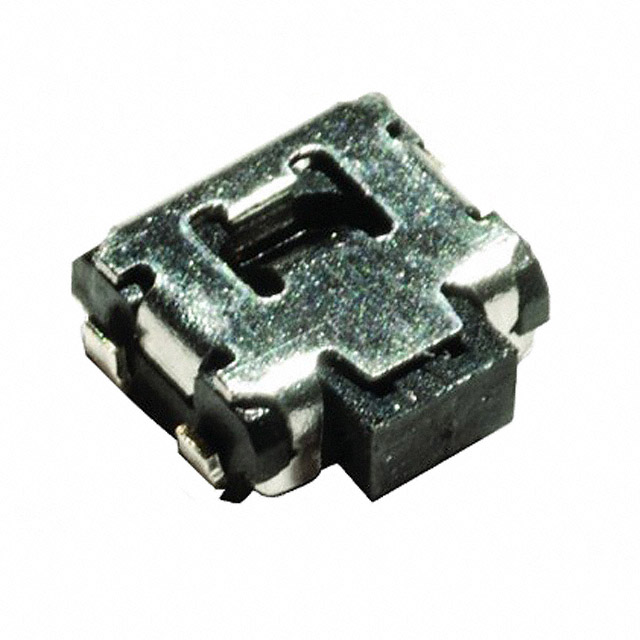

C&K’s PTS840 series of microminiature SMT side actuated switches feature a front PIP leads option for strong shear resistance – and a reduced footprint of 3.5 x 3.55mm. The long-lasting, reliable PTS840 is perfect for applications in the personal health diagnostics, consumer electronics and remote control fields.
