845-126 Series
Manufacturer: EDAC Inc.
Beta
⌘K

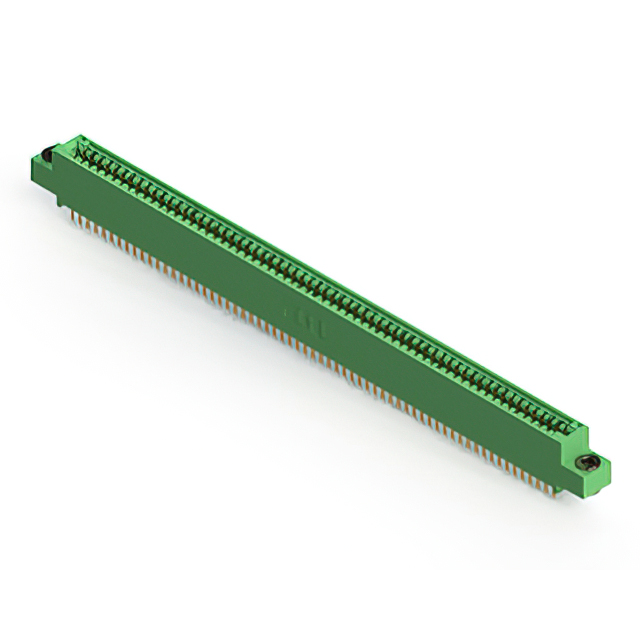

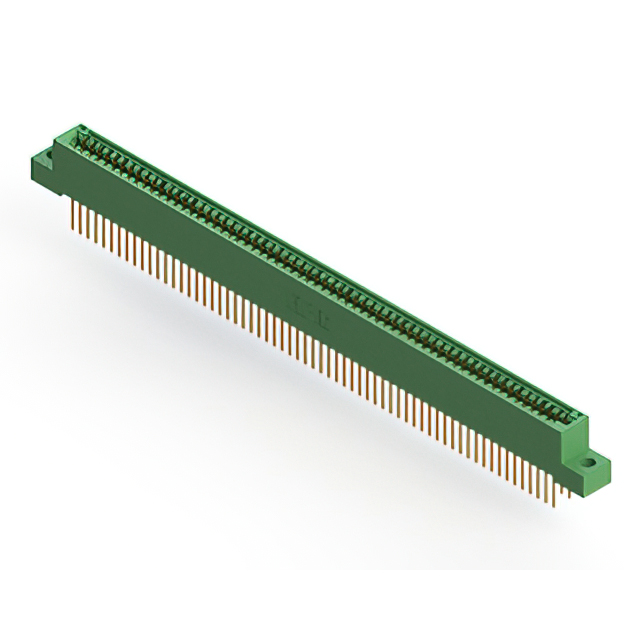

CONN EDGE DUAL FML 126POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Mounting Type | Read Out | Number of Positions | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Positions/Bay/Row | Gender | Contact Finish | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Material | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Solder | 63 | Female | Gold | Non Specified - Dual Edge | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Solder | 63 | Female | Gold | Non Specified - Dual Edge | 0.156 " | 3.96 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Solder | 63 | Female | Gold | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Wire Wrap | 63 | Female | Gold | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Solder | 63 | Female | Gold | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Wire Wrap | 63 | Female | Gold | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Wire Wrap | 63 | Female | Gold | Non Specified - Dual Edge | 0.156 " | 3.96 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 63 | Female | Gold | Non Specified - Dual Edge | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Solder | 63 | Female | Gold | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 0.1 " | 2.54 mm | Through Hole | Dual | 126 | 2 | 0.25 Ám | 10 Áin | Solder | 63 | Female | Gold | Non Specified - Dual Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | Copper Alloy | Cantilever |
