LLCC68 Series

Catalog

LOW POWER LONG RANGE RF TRANSCEIVER, 434 MHZ TO 915 MHZ, 24 PINS, QFN-EP

Part	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Modulation	Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Type	Power - Output	Current - Transmitting [Min]	Current - Transmitting [Max]	RF Family/Standard	Mounting Type	Data Rate (Max)	Supplier Device Package	Current - Receiving [Min]	Current - Receiving [Max]	Frequency [Min]	Frequency [Max]	Interconnect System	Primary Attributes	Suggested Programming Environment	Secondary Attributes	Function	Platform	Contents	Utilized IC / Part

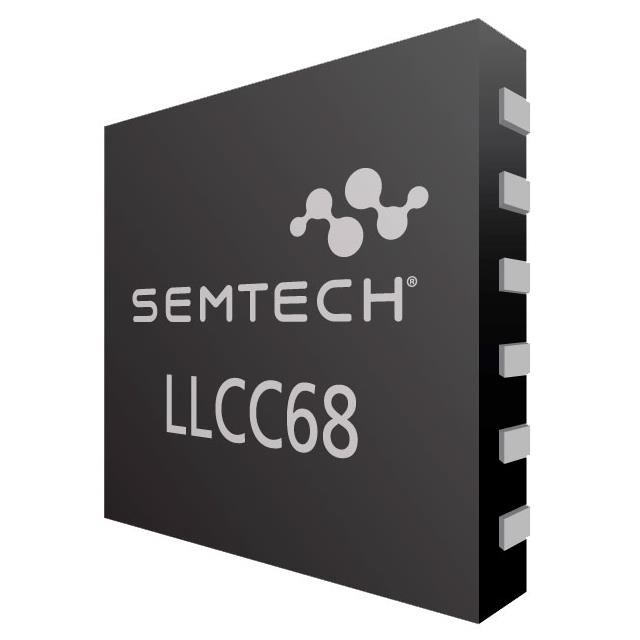

Semtech Corporation LLCC68IMLTRT	-129 dBm	85 °C	-40 C	SPI	FSK GFSK	LoRa™	1.8 V	3.7 V	24-VFQFN Exposed Pad	TxRx + MCU	22 dBm	32 mA	118 mA	802.15.4	Surface Mount	300 kbps	24-QFN (4x4)	4.2 mA	10.1 mA	150 MHz	960 MHz

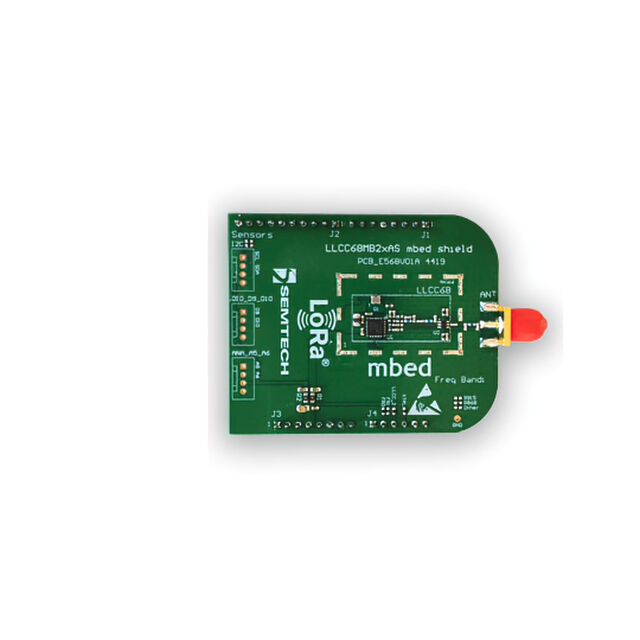

Semtech Corporation LLCC68MB2BAS										RF												Arduino R3 Shield	868 MHz	Mbed-Enabled	SPI Interface(s)	LoRa	Arduino	Board(s)	LLCC68
