857-060 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 60POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Color	Termination	Number of Rows [custom]	Flange Feature	Number of Positions/Bay/Row	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Read Out	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Card Type	Contact Type	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 857-060-522-207	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Black	Solder	2	Flush Mount M3 Threaded Insert Top Opening	30	Female	0.25 Ám	10 Áin	Gold	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 857-060-400-202	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Black	Solder Eyelet(s)	2	Flush Mount Top Opening Unthreaded	30	Female			Tin	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in	3.25 mm	0.128 "
EDAC Inc. 857-060-420-207	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Black	Solder	2	Flush Mount M3 Threaded Insert Top Opening	30	Female			Tin	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in

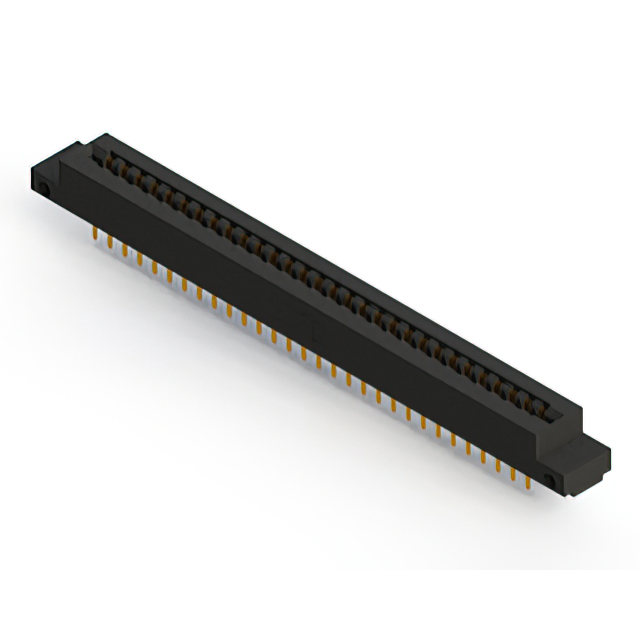

EDAC Inc. 857-060-520-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Black	Solder	2	Side Mount Opening Unthreaded	30	Female	0.25 Ám	10 Áin	Gold	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in	3.25 mm	0.128 "

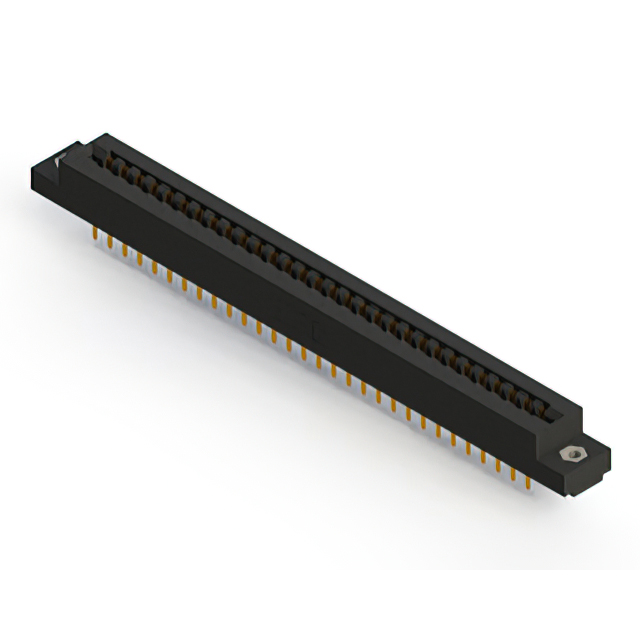

EDAC Inc. 857-060-520-207	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Black	Solder	2	Flush Mount M3 Threaded Insert Top Opening	30	Female	0.25 Ám	10 Áin	Gold	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in

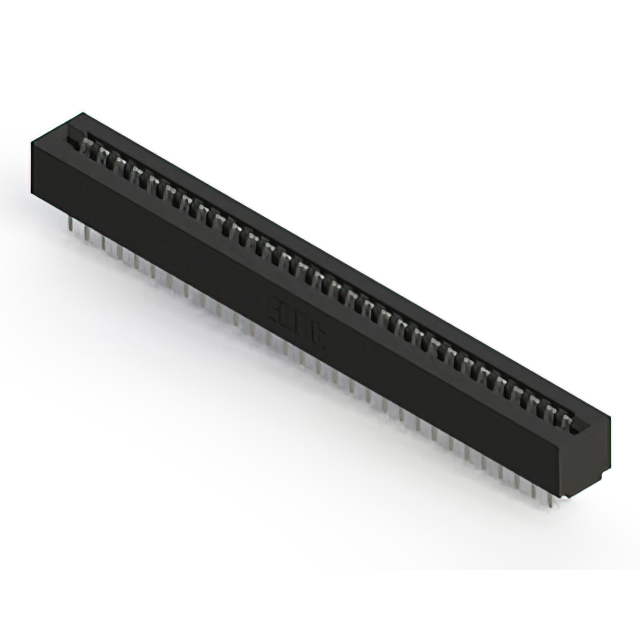

EDAC Inc. 857-060-420-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Black	Solder	2		30	Female			Tin	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in
EDAC Inc. 857-060-540-204	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Black	Wire Wrap	2	Flush Mount Top Opening Unthreaded	30	Female	0.25 Ám	10 Áin	Gold	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in	3.96 mm	0.156 "
EDAC Inc. 857-060-522-201	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Black	Solder	2		30	Female	0.25 Ám	10 Áin	Gold	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in

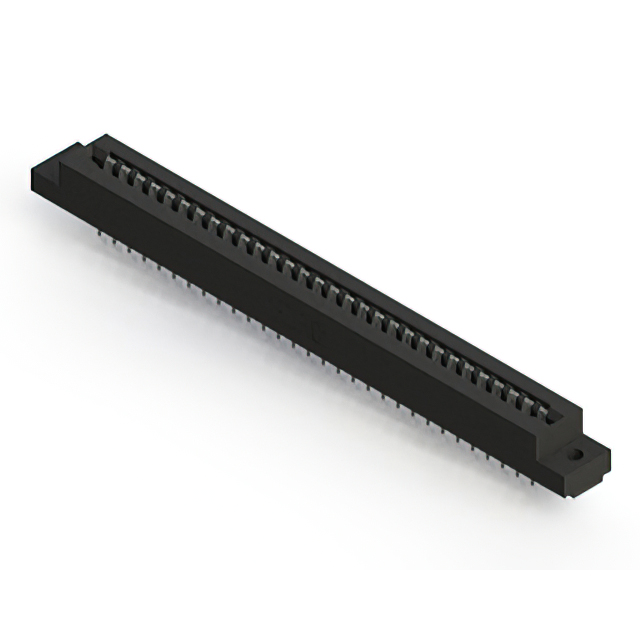

EDAC Inc. 857-060-456-202	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Black	Solder	2	Flush Mount Top Opening Unthreaded	30	Female			Tin	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in	3.25 mm	0.128 "	Card Extender
EDAC Inc. 857-060-460-207	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Black	Solder	2	Flush Mount M3 Threaded Insert Top Opening	30	Female			Tin	Dual	60	125 °C	-40 C	Copper Alloy	Non Specified - Dual Edge	Semi Bellows	3.96 mm	0.156 in			Card Extender
