MP3306 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
EVAL BOARD FOR MP3306
| Part | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output / Channel | Voltage - Output | Contents | Outputs and Type | Features | Topology | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Supply (Max) [Max] | Mounting Type | Voltage - Supply (Min) [Min] | Internal Switch(s) | Dimming | Applications | Package / Case | Supplier Device Package | Frequency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | MP3306 | 12 VDC | 3 V | 20 mA | 30 V | Board(s) | 1 Non-Isolated Output | Dimmable | ||||||||||||||

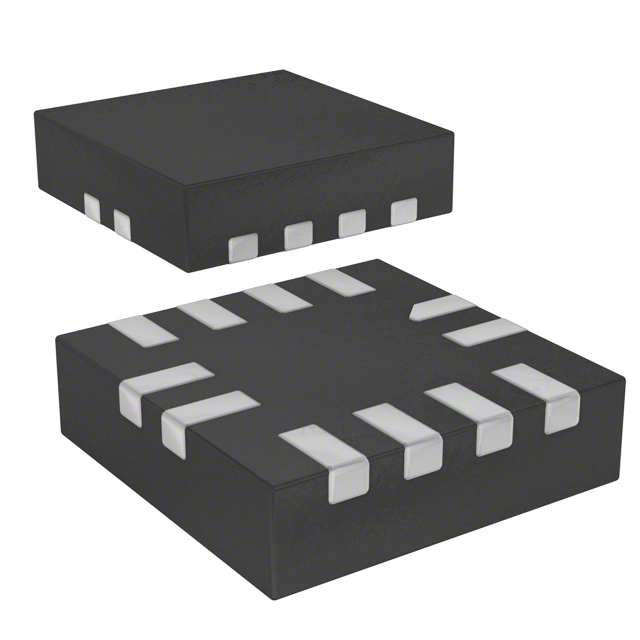

 Monolithic Power Systems Inc. | 1.8 A | 30 V | Step-Up (Boost) | -40 C | 125 °C | 1 | 12 V | Surface Mount | 3 V | Analog PWM | Backlight | 12-TFQFN | 12-QFN (2x2) | 690 kHz | DC DC Regulator | |||||||
Monolithic Power Systems Inc. | 1.8 A | 30 V | Step-Up (Boost) | -40 C | 125 °C | 1 | 12 V | Surface Mount | 3 V | Analog PWM | Backlight | 12-TFQFN | 12-QFN (2x2) | 690 kHz | DC DC Regulator |
