SFW14S Series

Catalog

CONN FFC FPC VERT 14POS 1MM SMD

Part	Housing Color	Mating Cycles	Mounting Type	Termination	Locking Feature	Material Flammability Rating	Voltage Rating	Actuator Material	Flat Flex Type	Pitch	Pitch	Contact Material	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Housing Material	FFC, FCB Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Actuator Color	Cable End Type

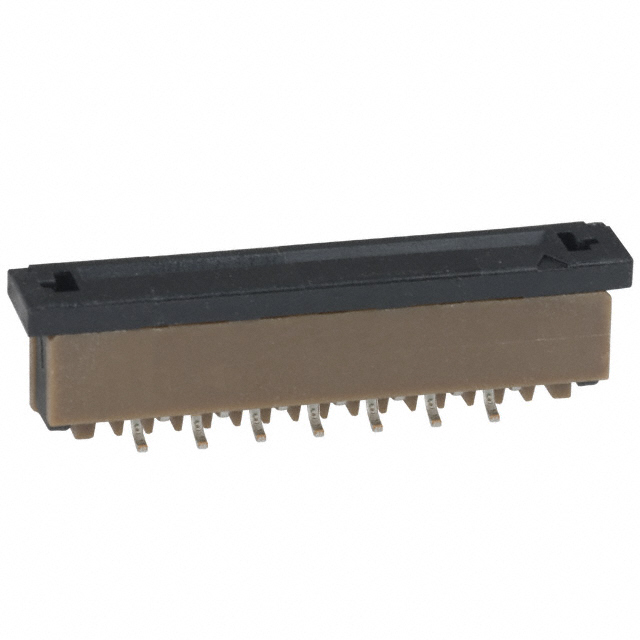

Amphenol ICC (FCI) SFW14S-2STE1LF	Brown	20	Surface Mount	Solder	Slide Lock	UL94 V-0	100 V	Thermoplastic Glass Filled	FFC FPC	1 mm	0.039 in	Phosphor Bronze	Contacts Vertical - 1 Sided	0.209 in	5.3 mm	14	Glass Filled Thermoplastic	0.33 mm	-55 C	105 ░C	Tin
Amphenol ICC (FCI) SFW14S-6STE1LF	Brown	10	Surface Mount	Solder	Slide Lock	UL94 V-0	100 V	Thermoplastic Glass Filled	CIC	1 mm	0.039 in	Phosphor Bronze	Contacts Vertical - 1 Sided	0.209 in	5.3 mm	14	Glass Filled Thermoplastic	0.3 mm	-55 C	85 °C	Tin	Black	Tapered
Amphenol ICC (FCI) SFW14S-2STMAE1LF	Brown	20	Surface Mount	Solder		UL94 V-0	100 V	Thermoplastic Glass Filled	FPC	1 mm	0.039 in	Phosphor Bronze	Contacts Vertical - 1 Sided	0.209 in	5.3 mm	14	Glass Filled Thermoplastic	0.33 mm	-55 C	85 °C	Gold

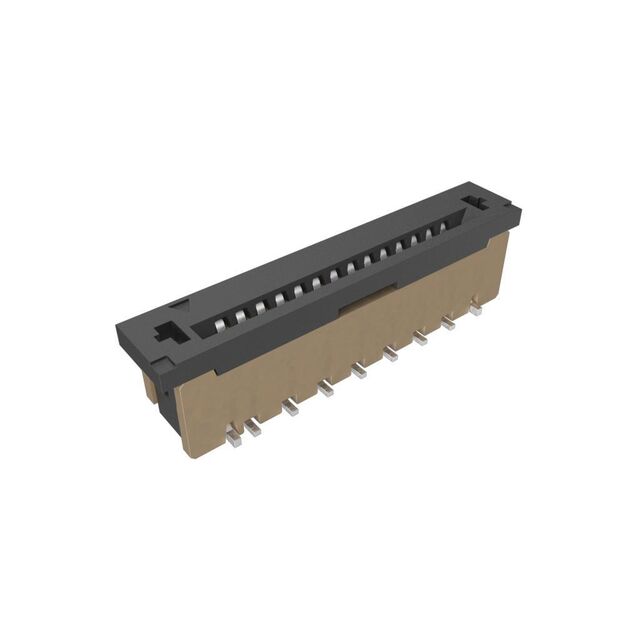

Amphenol ICC (FCI) SFW14S-2STME1LF	Brown	20	Surface Mount	Solder		UL94 V-0	100 V	Thermoplastic Glass Filled	FFC FPC	1 mm	0.039 in	Phosphor Bronze	Contacts Vertical - 1 Sided	0.209 in	5.3 mm	14	Glass Filled Thermoplastic	0.33 mm	-55 C	105 ░C	Tin
