fakra-generation-1 Series
Manufacturer: Amphenol RF
Beta
⌘K

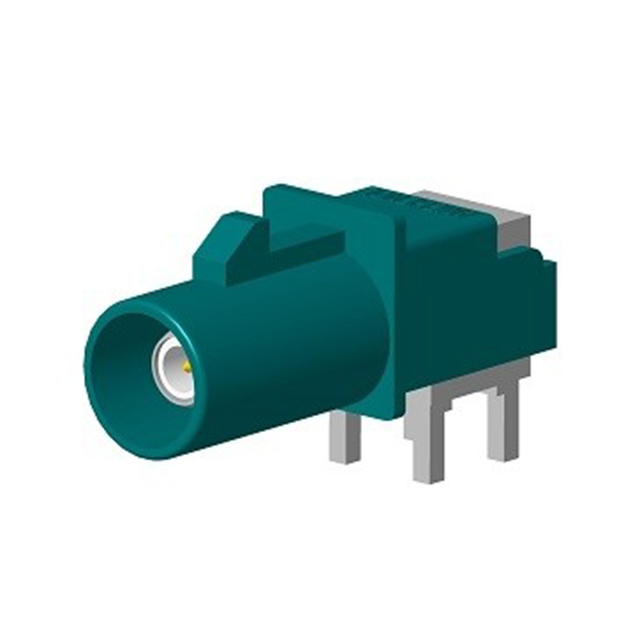

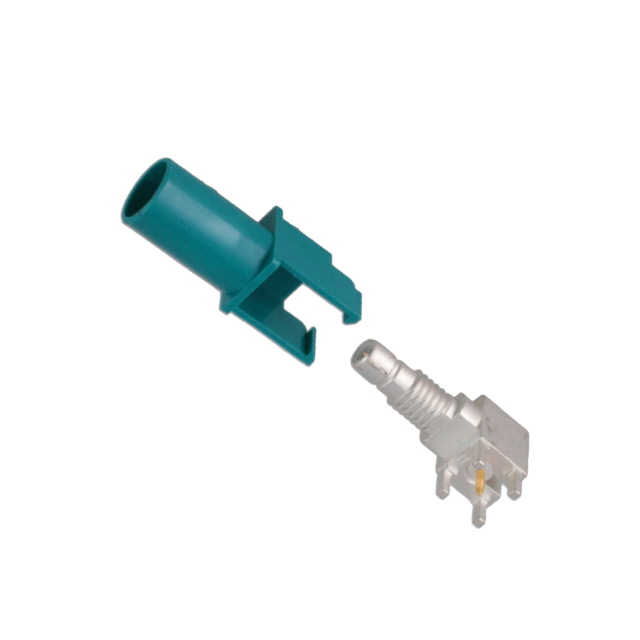

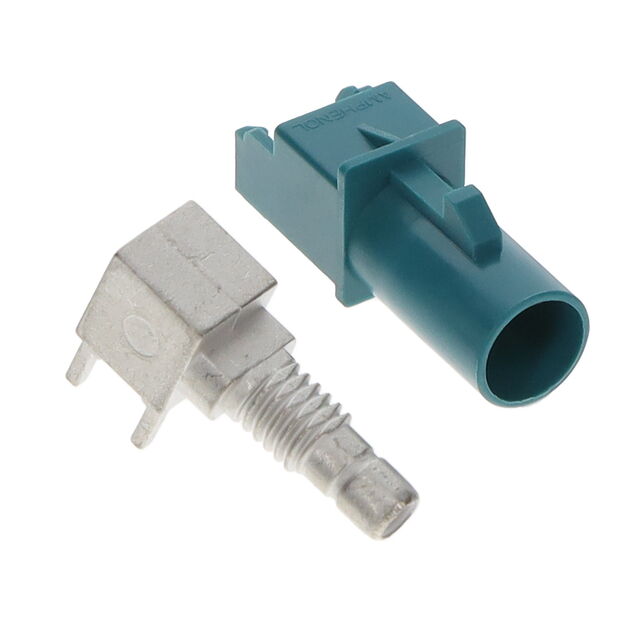

CONN FAKRA PLUG R/A 50 OHM PCB
| Part | Includes | Connector Type | Center Contact Material | Body Finish | Connector Style | Contact Termination | Dielectric Material | Insertion Loss | Shield Termination | Center Contact Plating | Mounting Type | Number of Ports | Features | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] | Body Material | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | 1 Connector 1 Housing | Male Pin Plug | Brass | Tin | Fakra SMB | Solder | Polytetrafluoroethylene (PTFE) | 0.3 dB | Solder | Gold | Through Hole Right Angle | 1 | Code Z | Locking Ramp | 125 °C | -65 ░C | 6000 MHz | Zinc Die Cast | 50 Ohms | |
 Amphenol RF | 1 Connector 1 Housing | Male Pin Plug | Brass | Tin | Fakra SMB | Solder | Polytetrafluoroethylene (PTFE) | 0.3 dB | Solder | Gold | Through Hole Right Angle | 1 | Code Z | Locking Ramp | 125 °C | -65 ░C | 6000 MHz | Zinc Die Cast | 50 Ohms | |
 Amphenol RF | Male Pin Plug | Brass | Tin | Fakra SMB | Solder | Polytetrafluoroethylene (PTFE) | Solder | Gold | Through Hole Right Angle | 1 | Code Z | Locking Ramp | 125 °C | -65 ░C | 2.5 GHz | Zinc Die Cast | 50 Ohms | |||
 Amphenol RF | Male Pin Plug | Brass | Tin | Fakra SMB | Solder | Polytetrafluoroethylene (PTFE) | Solder | Gold | Through Hole Right Angle | 1 | Code H | Locking Ramp | 100 °C | -40 °C | 6000 MHz | Zinc Die Cast | 50 Ohms | Heather Violet |
