208979 Series

Catalog

CONV OUTLET ASSEMBLY (GRAY)

Part	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Connector Type	Connector Style	Voltage Rating	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]
TE Connectivity Raychem Cable Protection 1-208979-1	UL94 V-2	15 A	Panel Mount Snap-In	CSA UL	24.59 mm	24.59 mm	IDC	Receptacle Female Sockets	NEMA 5-15R	125 VAC	0.07 in	0.03 in	1.78 mm	0.76 mm

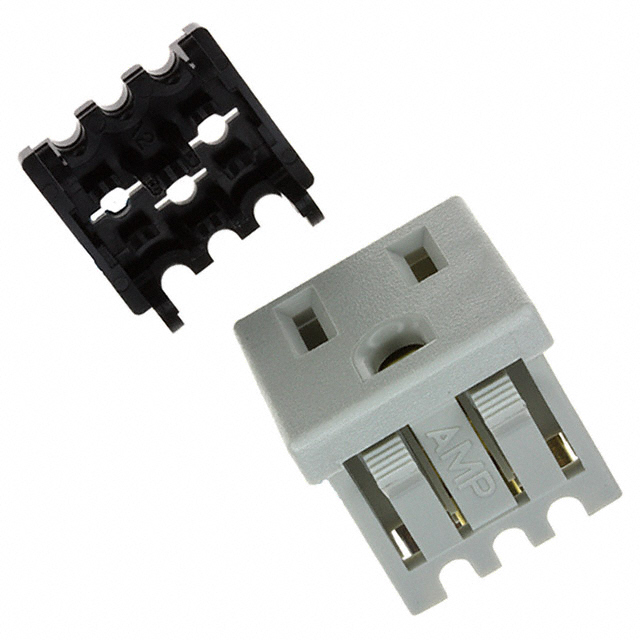

TE Connectivity Raychem Cable Protection 1-208979-4	UL94 V-2	15 A	Panel Mount Snap-In	CSA UL	24.59 mm	24.59 mm	IDC	Receptacle Female Sockets	NEMA 5-15R	125 VAC	0.07 in	0.03 in	1.78 mm	0.76 mm

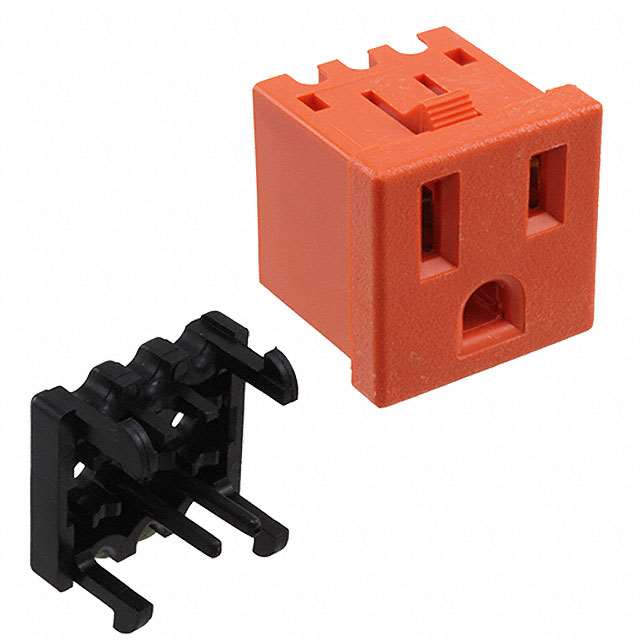

TE Connectivity Raychem Cable Protection 1-208979-2	UL94 V-2	15 A	Panel Mount Snap-In	CSA UL	24.59 mm	24.59 mm	IDC	Receptacle Female Sockets	NEMA 5-15R	125 VAC	0.07 in	0.03 in	1.78 mm	0.76 mm

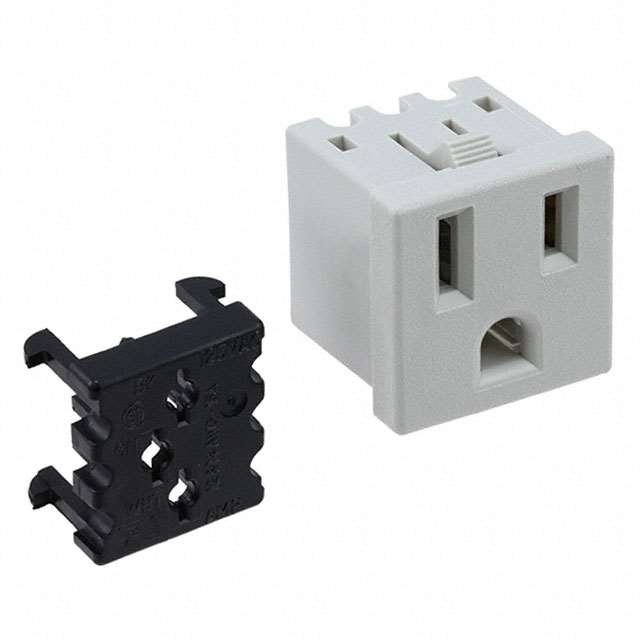

TE Connectivity Raychem Cable Protection 1-208979-0	UL94 V-2	15 A	Panel Mount Snap-In	CSA UL	24.59 mm	24.59 mm	IDC	Receptacle Female Sockets	NEMA 5-15R	125 VAC	0.07 in	0.03 in	1.78 mm	0.76 mm
