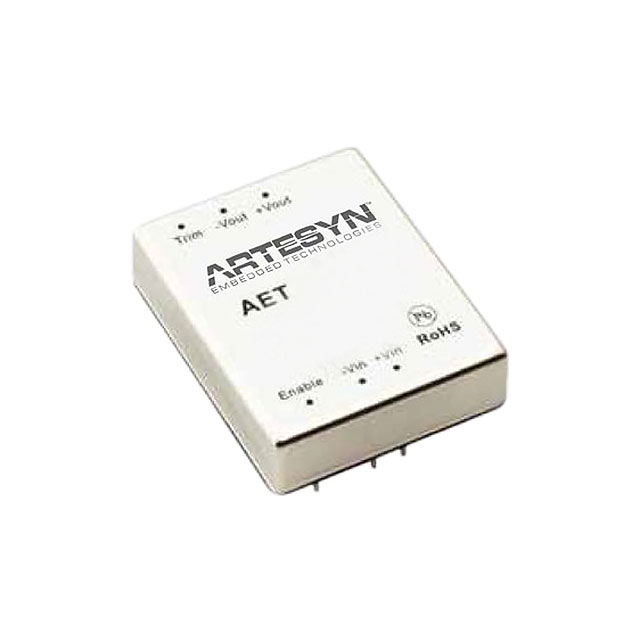

AET00BB Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
DC DC CONVERTER +/-12V 20W
| Part | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Input (Max) [Max] | Number of Outputs | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) | Current - Output (Max) | Efficiency | Applications | Power (Watts) | Voltage - Input (Min) [Min] | Type | Features | Voltage - Output 1 | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1.5 kV | 71 °C | -40 C | 7-DIP Module | 75 V | 2 | Through Hole | 50.8 mm | 1.6 in | 12.2 mm | 2 in | 0.48 " | 40.6 mm | 835 mA | 835 mA | 85 % | ITE (Commercial) | 20 W | 18 V | Isolated Module | OVP Remote On/Off SCP | 12 V | -12 V |
