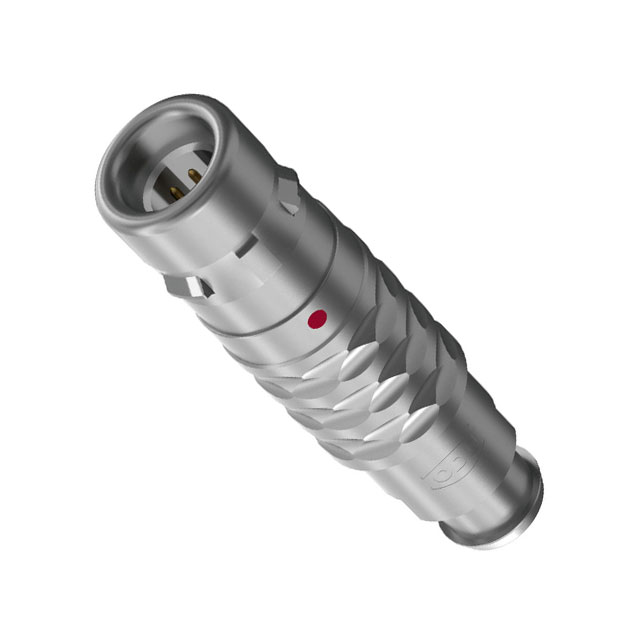

S21K0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN PLUG MALE 8P GOLD SLDR CUP
| Part | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Mounting Type | Current Rating (Amps) | Applications | Contact Finish - Mating | Primary Material | Insert Material | Ingress Protection | Contact Material | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Shell Material | Fastening Type | Shielding | Backshell Material, Plating | Number of Positions | Orientation | Color | Connector Type | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 8 | 0 | Silver | Plug Male Pins | Backshell Strain Relief | ||
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 4 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.177 in | 0.197 in | 5 mm | 4.5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 16 | 0 | Silver | Plug Male Pins | Backshell Strain Relief | ||
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 12 Amps | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.197 in | 0.217 in | 5.5 mm | 5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 0 | Silver | Plug Male Pins | Backshell Strain Relief | |||
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.256 in | 0.276 " | 7 mm | 6.5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 4 | 0 | Silver | Plug Male Pins | Backshell Strain Relief | ||
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 12 Amps | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.157 in | 0.177 " | 4.5 mm | 4 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 0 | Silver | Plug Male Pins | Backshell Strain Relief | |||
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 4 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.079 in 2 mm | 0.098 in 2.5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 16 | 0 | Silver | Plug Male Pins | Backshell Strain Relief | ||||
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 10 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.197 in | 0.217 in | 5.5 mm | 5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 5 | 0 | Silver | Plug Male Pins | Backshell Strain Relief | 333 V | |
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.197 in | 0.217 in | 5.5 mm | 5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 5 | 0 | Silver | Plug Male Pins | Backshell Strain Relief | ||
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 6 A | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.217 in | 0.236 in | 6 mm | 5.5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 7 | 0 | Silver | Plug Male Pins | Backshell Strain Relief | 400 V | |
Chrome over Nickel | 120 °C | -40 C | 1 | Free Hanging (In-Line) | 12 Amps | Industrial Medical Military Testing Equipment & Measurement | Gold | Metal | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Brass | 0.256 in | 0.276 " | 7 mm | 6.5 mm | Brass | Push-Pull | Shielded | Brass Chrome over Nickel | 2 | 0 | Silver | Plug Male Pins | Backshell Strain Relief |
