G80LAC-P Series
Manufacturer: ODU
Beta
⌘K

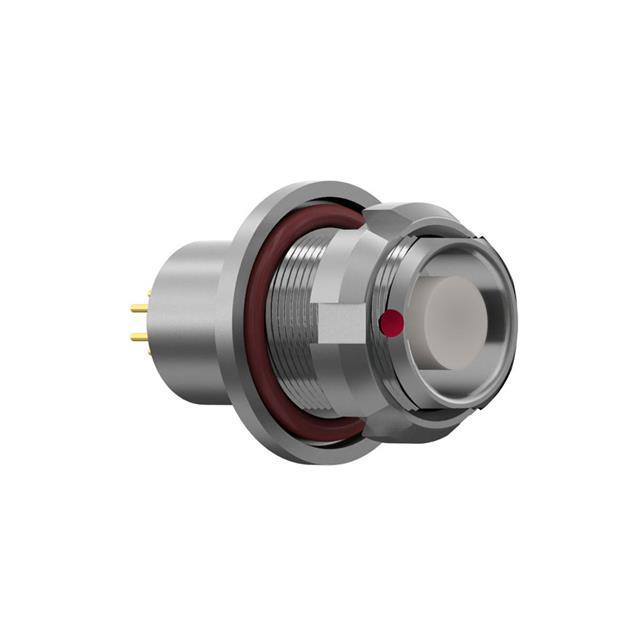

CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Ingress Protection | Shielding | Insert Material | Features | Shell Material | Shell Finish | Mounting Type | Contact Finish - Mating | Applications | Contact Material | Mounting Feature | Shell Size - Insert [custom] | Current Rating (Amps) | Fastening Type | Connector Type | Primary Material | Color | Orientation | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP68 - Dust Tight Waterproof | Shielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 7.5 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 4 | 120 °C | -40 C | |||
IP68 - Dust Tight Waterproof | Unshielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount Through Hole | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 7.5 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 2 | 120 °C | -40 C | 500 V | Solder | |
IP68 - Dust Tight Waterproof | Shielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 4 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 7 | 120 °C | -40 C | |||
IP68 - Dust Tight Waterproof | Shielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 7.5 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 2 | 120 °C | -40 C | |||
IP68 - Dust Tight Waterproof | Shielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 7.5 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 120 °C | -40 C | ||||
IP68 - Dust Tight Waterproof | Shielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 7.5 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 5 | 120 °C | -40 C | |||
IP68 - Dust Tight Waterproof | Shielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 4 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 9 | 120 °C | -40 C | |||
IP68 - Dust Tight Waterproof | Unshielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 7.5 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 4 | 120 °C | -40 C | 300 VDC | ||
IP68 - Dust Tight Waterproof | Shielded | Polyetheretherketone (PEEK) | Ground | Brass | Chrome over Nickel | Panel Mount | Gold | Industrial Medical Military Testing Equipment & Measurement | Brass | Bulkhead - Front Side Nut | 0 | 4 A | Push-Pull | Receptacle Female Sockets | Metal | Silver | A | 6 | 120 °C | -40 C |
