76314 Series

Catalog

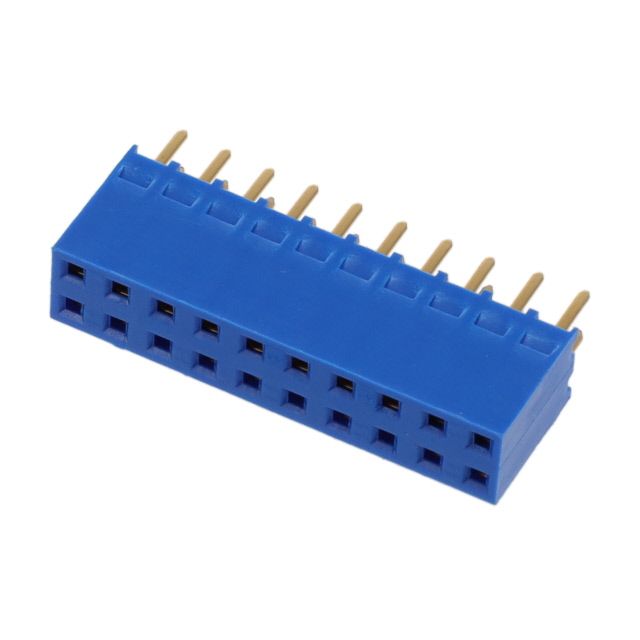

CONN RCPT 20POS 0.1 GOLD PCB

Part	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Insulation Color	Material Flammability Rating	Connector Type	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Style	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Termination	Number of Positions	Fastening Type	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 76314-110LF	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	20	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	30 Áin	0.76 Ám
Amphenol ICC (FCI) 76314-121LF	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	42	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	30 Áin	0.76 Ám
Amphenol ICC (FCI) 76314-125	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	50	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	30 Áin	0.76 Ám
Amphenol ICC (FCI) 76314-126	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	52	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	30 Áin	0.76 Ám
Amphenol ICC (FCI) 76314-204	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	8	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	39.4 µin	1 µm
Amphenol ICC (FCI) 76314-134LF	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	68	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	30 Áin	0.76 Ám
Amphenol ICC (FCI) 76314-109	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	18	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	30 Áin	0.76 Ám
Amphenol ICC (FCI) 76314-212	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	24	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	39.4 µin	1 µm
Amphenol ICC (FCI) 76314-102LF	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	4	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	30 Áin	0.76 Ám
Amphenol ICC (FCI) 76314-124LF	0.135 in	3.43 mm	Tin	Blue	UL94 V-0	Receptacle	Brass	Glass Filled Polyester Thermoplastic	2 çm	78.7 çin	0.1 in	2.54 mm	Gold	Board to Board Cable	2	2.54 mm	0.1 in	Female Socket	Solder	48	Push-Pull	All	Through Hole	0.335 "	8.51 mm	Square	30 Áin	0.76 Ám
