1838275 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

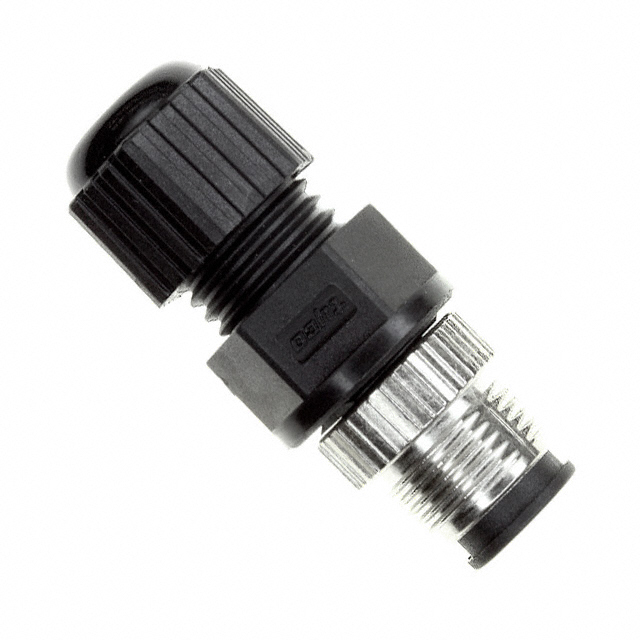

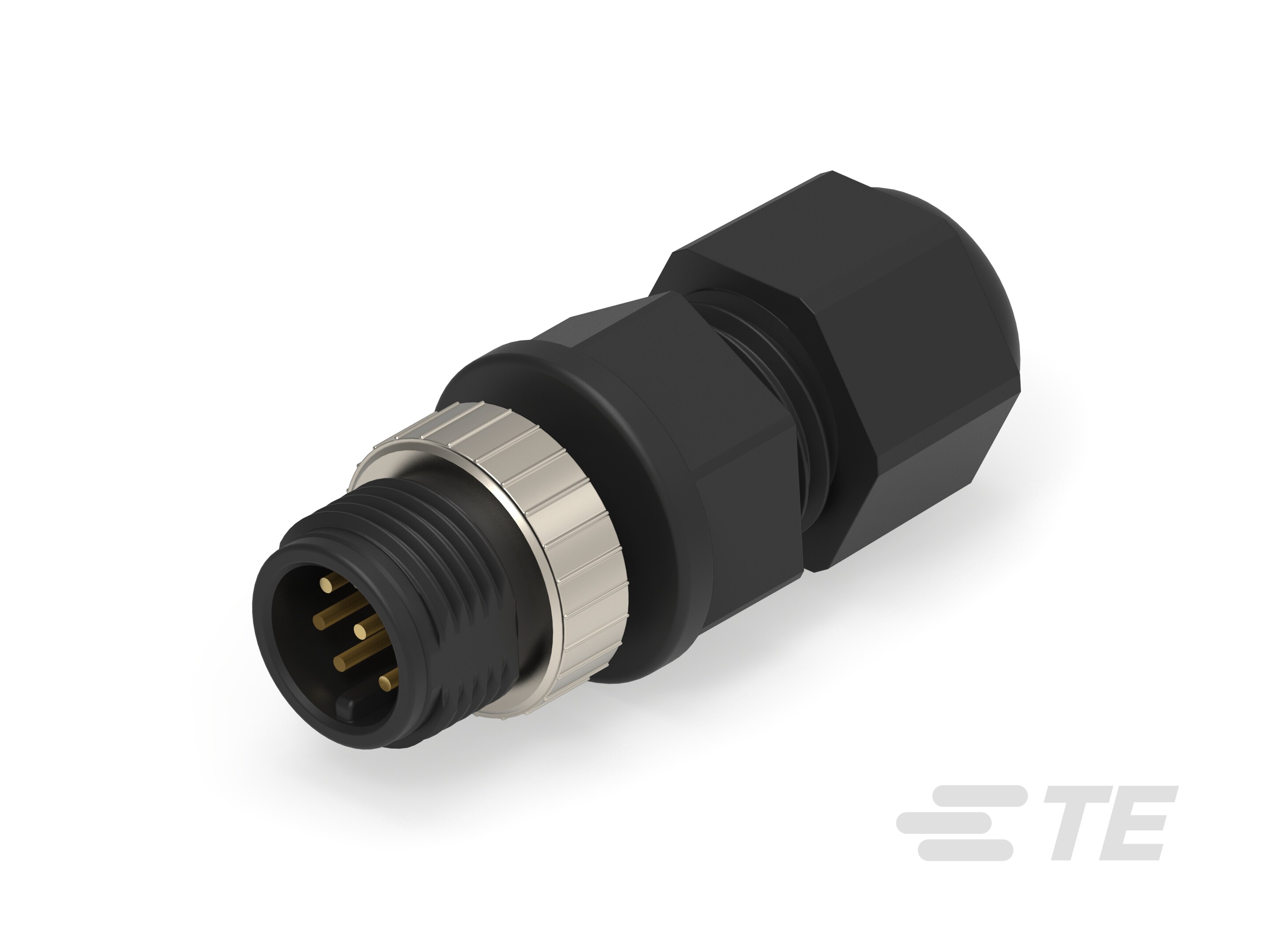

CONN CIRCULAR PIN 4 POS SOLDER CUP ST CABLE MOUNT 4 TERMINAL 1 PORT
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Current Rating (Amps) | Shell Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Primary Material | Applications | Shell Size - Insert | Mounting Type | Number of Positions | Orientation | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.15 µm | 5.9 µin | IP67 - Dust Tight Waterproof | 5 A | Glass Filled Nylon Polyamide (PA) | 250 VAC | 90 °C | -25 °C | Male Pins Plug | Plastic | Automotive Industrial | M12-4 | Free Hanging (In-Line) | 4 | Keyed | Gold |
 TE Connectivity Raychem Cable Protection | 0.15 µm | 5.9 µin | IP67 - Dust Tight Waterproof | 2 A | Glass Filled Nylon Polyamide (PA) | 30 VAC | 90 °C | -25 °C | Male Pins Plug | Plastic | Automotive Industrial | M12-8 | Free Hanging (In-Line) | 8 | Keyed | Gold |
 TE Connectivity Raychem Cable Protection | 0.15 µm | 5.9 µin | IP67 - Dust Tight Waterproof | 5 A | Glass Filled Nylon Polyamide (PA) | 60 VAC | 90 °C | -25 °C | Male Pins Plug | Plastic | Automotive Industrial | M12-5 | Free Hanging (In-Line) | Keyed | Gold |
