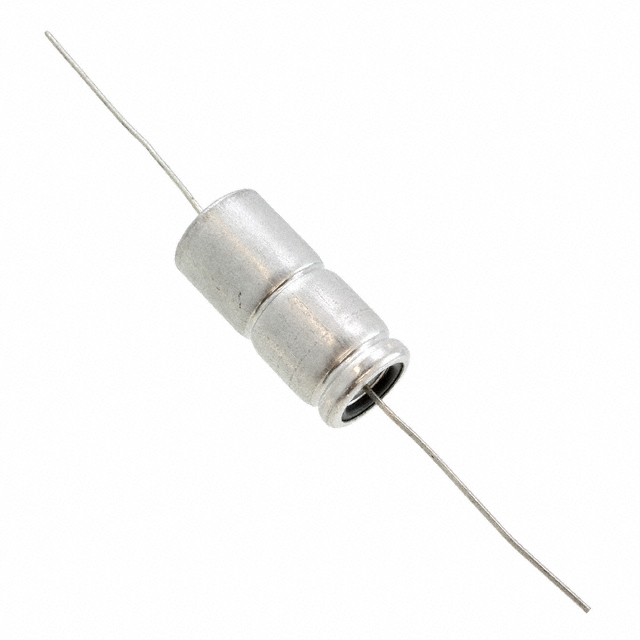

PEG226K Series
Manufacturer: KEMET
Beta
⌘K
CAP ALUM 1200UF 40V AXIAL TH
| Part | Polarization | Voltage - Rated | ESR (Equivalent Series Resistance) | Mounting Type | Lifetime @ Temp. | Capacitance | Package / Case | Ripple Current @ Low Frequency | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Tolerance [Min] | Tolerance [Max] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Polar | 40 V | 69 mOhm | Through Hole | 1500 Hrs | 1.2 mF | Axial Can | 2.45 A | Automotive | -40 C | 150 °C | AEC-Q200 | -10 % | 30 % | 0.63 in | 1.457 in | 16 mm | 37 mm |

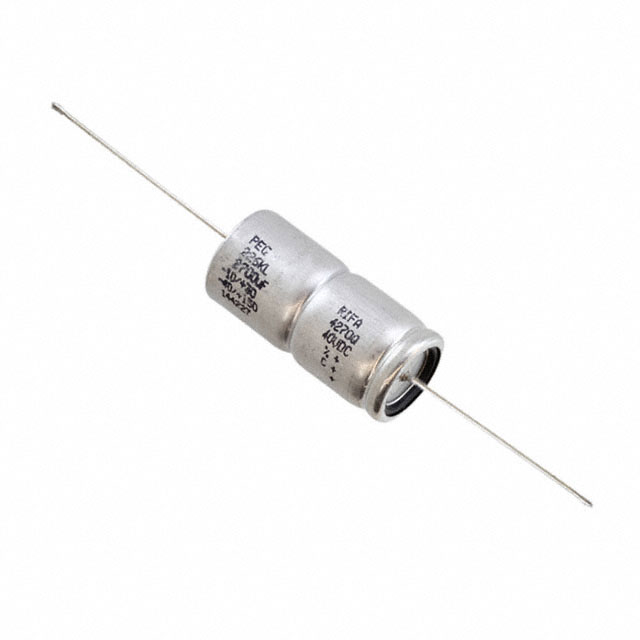

 KEMET | Polar | 40 V | 32 mOhm | Through Hole | 2000 Hrs | 2700 µF | Axial Can | 3.535 A | Automotive | -40 C | 150 °C | AEC-Q200 | -10 % | 30 % | 0.787 " | 1.811 " | 20 mm | 46 mm |
