Circular Metric Connectors RF-12P1N8AA200
Circular Metric Connectors RF-12P1N8AA200
| Part | Shell Material | Mounting Feature | Contact Type | Ingress Protection | Contact Shape | Housing Color | Orientation | Mounting Type | Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Contact Size | Connector Type | Note | Shell Size - Insert | Insert Material | Shielding | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | Gadolinium-Zinc | Flange | Crimp | IP67 - Dust Tight Waterproof | Circular | Silver | N (Normal) | Panel Mount | For Male Pins | 12 | -20 ░C | 125 °C | 1 mm | Receptacle Housing | Contacts Not Included | M23-12 | Nylon 6/6 Polyamide (PA66) | Shielded | Threaded | |

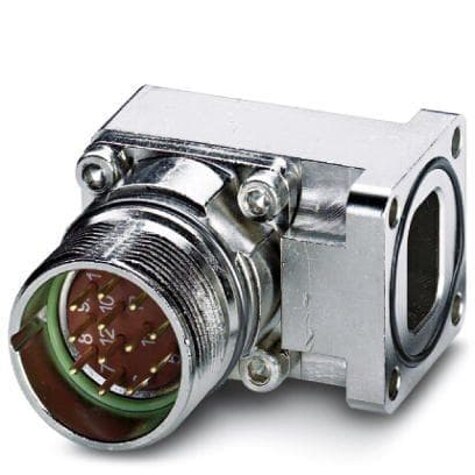

 Phoenix Contact | Gadolinium-Zinc | Flange | Crimp | IP67 - Dust Tight Waterproof | Circular | Silver | N (Normal) | Panel Mount Right Angle | For Male Pins | 12 | -40 C | 125 °C | 1 mm | Receptacle Housing | Contacts Not Included | M23-12 | Nylon 6/6 Polyamide (PA66) | Shielded | Threaded | Backshell |
Phoenix Contact | Gadolinium-Zinc | Crimp | IP67 - Dust Tight Waterproof | Circular | Silver | N (Normal) | Free Hanging (In-Line) | For Male Pins | -40 C | 125 °C | 1 mm | Plug Housing | Contacts Not Included | M23-17 | Nylon 6/6 Polyamide (PA66) | Shielded | Threaded | Backshell Coupling Nut | ||
 Phoenix Contact | Gadolinium-Zinc | Crimp | IP67 - Dust Tight Waterproof | Circular | Silver | N (Normal) | Free Hanging (In-Line) | For Male Pins | 12 | -40 C | 125 °C | 1 mm | Plug Housing | Contacts Not Included | M23-12 | Nylon 6/6 Polyamide (PA66) | Shielded | Threaded | Backshell Coupling Nut |
