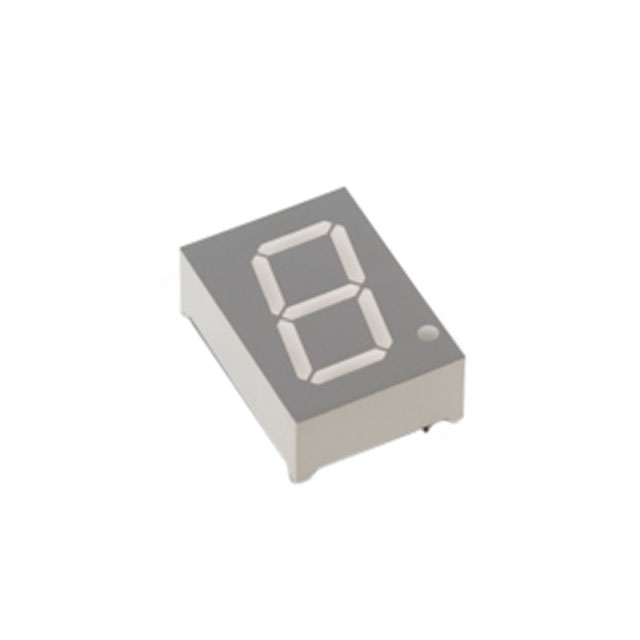

HDSP-H8 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISPLAY 7-SEG 0.8" SGL ORG 16DIP
| Part | Package / Case | Package / Case | Package / Case | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Millicandela Rating | Power Dissipation (Max) [Max] | Number of Characters [custom] | Common Pin | Wavelength - Peak | Current - Test | Display Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 0.6 in | 15.24 mm | 16-DIP | 2 V | 20.32 mm | 0.8 in | 35 mcd | 52 mW | 1 | Common Cathode | 610 nm | 20 mA | 7-Segment | 0.394 " | 0.787 in | 10 mm | 20 mm | 1.091 in | 27.7 mm |
