044206 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 8POS 4.2MM

Part	Shrouding	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Termination	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Applications	Contact Material	Insulation Material	Contact Finish - Post	Style	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Shape	Insulation Color
Molex 0442060006	Shrouded - 4 Wall	Male Pin	4.2 mm	0.165 in	Header	Solder	Locking Ramp	12.8 mm	0.504 in	3.5 mm	0.138 in	2	35.4 µin	0.9 µm	UL94 V-2	All	8	General Purpose Industrial Telecommunications	Brass	Polyamide (PA66) Nylon 6/6	Tin	Board to Cable/Wire	4.2 mm	0.165 in	35 µin	0.9 µm	Through Hole	Square	Natural

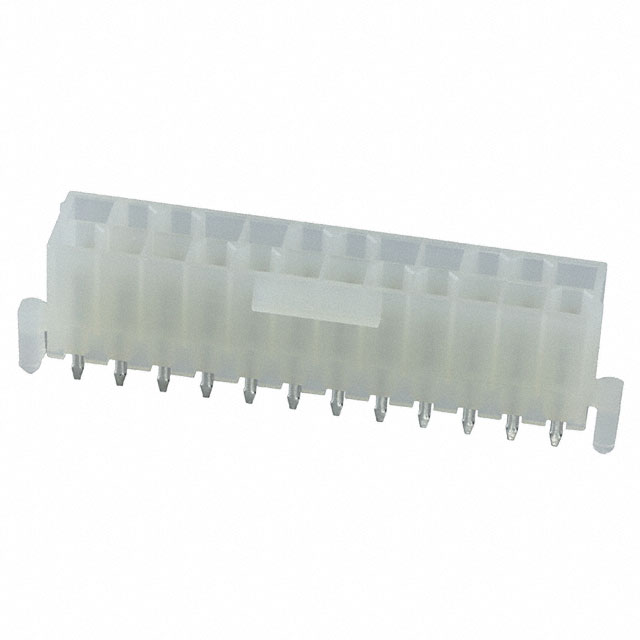

Molex 0442060001	Shrouded - 4 Wall	Male Pin	4.2 mm	0.165 in	Header	Solder	Locking Ramp	12.8 mm	0.504 in	3.5 mm	0.138 in	2	35.4 µin	0.9 µm	UL94 V-2	All	24	General Purpose Industrial Telecommunications	Brass	Polyamide (PA66) Nylon 6/6	Tin	Board to Cable/Wire	4.2 mm	0.165 in	35 µin	0.9 µm	Through Hole	Square	Natural
