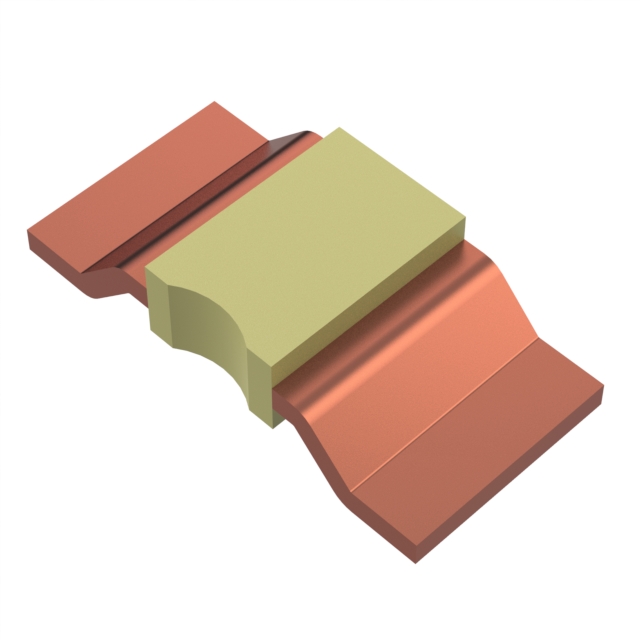

PSR100KTQFD0L30 Series

6432 (2512) size, 8W, 0.3mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Catalog

6432 (2512) size, 8W, 0.3mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Part	Power (Watts)	Tolerance	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Features	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)	Composition	Number of Terminations	Resistance	Supplier Device Package
Rohm Semiconductor PSR100KTQFD0L30	8 W	1 %	AEC-Q200	3.05 mm	0.25 "	6.35 mm	0.12 "	-65 ░C	347 °F	0 ppm/°C	150 ppm/°C	Automotive AEC-Q200 Current Sense	6432 Metric	2512	0.063 in	1.6 mm	Metal Element	2	300 µOhms	2512

Catalog

6432 (2512) size, 8W, 0.3mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Key Features

• High power max 15W, Ultra low resistance range (0.1mΩ or more)., Excellent TCR characteristic, Convex structure, ROHM resistors have obtained ISO9001 / IATF16949 certification., Corresponds to AEC-Q200.

Description

PSR100 series is ideal for current detection under high current circuit.
