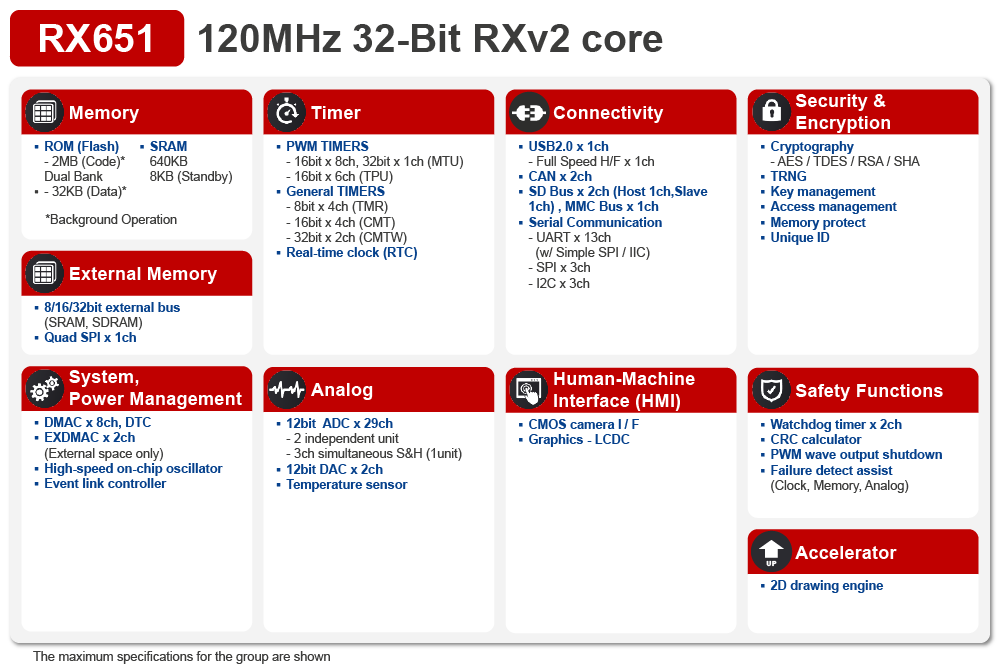

R5F56517 Series

32-bit Microcontroller for Motor Control with Multifunctional Timer, High-speed 12-bit A/D Converter and 10-bit A/D Converter

Manufacturer: Renesas Electronics Corporation

Catalog

32-bit Microcontroller for Motor Control with Multifunctional Timer, High-speed 12-bit A/D Converter and 10-bit A/D Converter

...

Part	Number of I/O	Peripherals	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Speed	Package / Case	Oscillator Type	Data Converters	EEPROM Size	RAM Size	Mounting Type	Core Processor	Connectivity	Core Size	Supplier Device Package	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters [custom]	Data Converters [custom]	Data Converters
Renesas Electronics Corporation R5F56316SDLK#U0	111	DMA LVD POR PWM WDT	FLASH	3.6 V	2.7 V	100 MHz	145-TFLGA	Internal	A/D 21x12b A/D 8x10b D/A 2x10b	32 K	128 K	Surface Mount	RX	CANbus EBI/EMI I2C LINbus SCI SPI USB	32-Bit Single-Core	145-TFLGA (7x7)	256 KB	85 °C	-40 °C
Renesas Electronics Corporation R5F566TAFDFL#50	33 I/O	DMA LVD POR PWM WDT	FLASH	5.5 V	2.7 V	160 MHz	48-LQFP	Internal		32 K	64 K	Surface Mount	RXv3	CANbus EBI/EMI I2C LINbus MMC/SD SCI SPI SSI UART/USART	32-Bit	48-LFQFP (7x7)	256 KB	85 °C	-40 °C	2 8	12b 12b
Renesas Electronics Corporation R5F564MFHDFC#31	127	DMA LVD POR PWM WDT	FLASH	3.6 V	2.7 V	120 MHz	176-LQFP	Internal		64 K	552 K	Surface Mount	RXv2	CANbus EBI/EMI Ethernet I2C LINbus MMC/SD SCI SPI SSI UART/USART USB	32-Bit Single-Core	176-LFQFP (24x24)	2 MB	85 °C	-40 °C
Renesas Electronics Corporation R5F56517EGFB#10	111	DMA LVD POR PWM WDT	FLASH	3.6 V	2.7 V	120 MHz	144-LQFP	External			256 K	Surface Mount	RXv2	CANbus EBI/EMI Ethernet I2C LINbus MMC/SD QSPI SCI SPI UART/USART USB	32-Bit	144-LFQFP (20x20)	768 KB	105 °C	-40 °C
Renesas Electronics Corporation R5F563T5EGFM#V0	39 I/O	DMA LVD POR PWM WDT	FLASH	3.6 V	2.7 V	100 MHz	64-LQFP	Internal	A/D 8x12b D/A 2x10b	8 K	8 K	Surface Mount	RX		32-Bit	64-LFQFP (10x10)	48 KB	105 °C	-40 °C
Renesas Electronics Corporation R5F566TAEGFM#30	39 I/O	DMA LVD POR PWM WDT	FLASH	5.5 V	2.7 V	160 MHz	64-LQFP	Internal		32 K	64 K	Surface Mount	RXv3	CANbus EBI/EMI I2C LINbus MMC/SD SCI SPI SSI UART/USART	32-Bit	64-LFQFP (10x10)	256 KB	105 °C	-40 °C			2 12 12 15

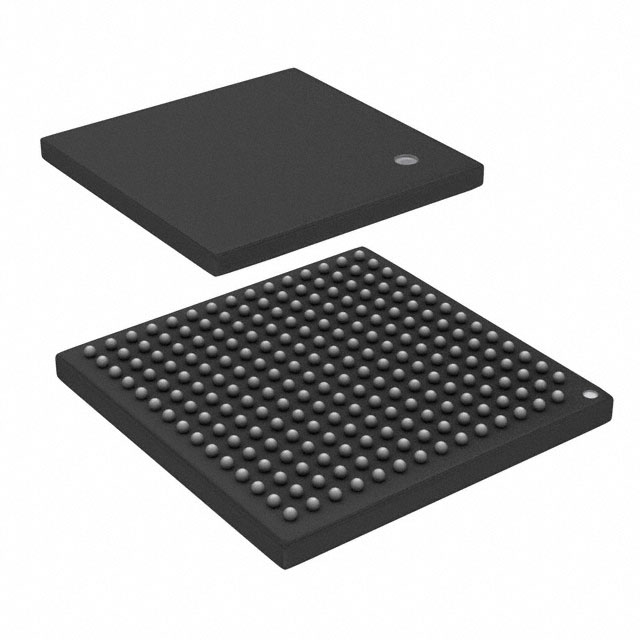

Renesas Electronics Corporation R5F566NNHDBD#20	182	DMA LCD LVD POR PWM WDT	FLASH	3.6 V	2.7 V	120 MHz	224-LFBGA	Internal		32 K	1 M	Surface Mount	RXv3	CANbus EBI/EMI Ethernet I2C MMC/SD QSPI SCI SPI SSI USB OTG	32-Bit Single-Core	224-LFBGA (13x13)	4 MB	85 °C	-40 °C
Renesas Electronics Corporation R5F565NEDDFB#10	111	DMA LVD POR PWM WDT	FLASH	3.6 V	2.7 V	120 MHz	144-LQFP	Internal		32 K	640 K	Surface Mount	RXv2	CANbus EBI/EMI Ethernet I2C LINbus MMC/SD QSPI SCI SPI UART/USART USB	32-Bit Single-Core	144-LFQFP (20x20)	2 MB	85 °C	-40 °C
Renesas Electronics Corporation R5F56517FDFP#30	78	DMA LVD POR PWM WDT	FLASH	3.6 V	2.7 V	120 MHz	100-LQFP	Internal	A/D 22x12b D/A 1x12b		256 K	Surface Mount	RXv2	CANbus EBI/EMI Ethernet I2C LINbus MMC/SD QSPI SCI SPI UART/USART USB	32-Bit Single-Core	100-LFQFP (14x14)	768 KB	85 °C	-40 °C
Renesas Electronics Corporation R5F565N7EDLJ#20	78	DMA LVD POR PWM WDT	FLASH	3.6 V	2.7 V	120 MHz	100-TFLGA	Internal	A/D 22x12b D/A 1x12b		256 K	Surface Mount	RXv2	CANbus EBI/EMI Ethernet I2C LINbus MMC/SD QSPI SCI SPI UART/USART USB	32-Bit Single-Core	100-TFLGA (7x7)	768 KB	85 °C	-40 °C

Description

The RX62T Group of high-performance microcontrollers with a maximum operating frequency of 100MHz are designed for motor control. They are equipped with multifunction timers (MTU, GPT), high-speed 12-bit A/D converter, and 10-bit A/D converter for facilitating motor control. The products also incorporate many safety features to comply with the IEC60730 safety standard for home appliances. In addition to a maximum of 256KB flash and 16KB RAM on-chip memory, they have a maximum of 32KB of on-chip flash memory for data storage. 64-pin to 112-pin packages are available.
