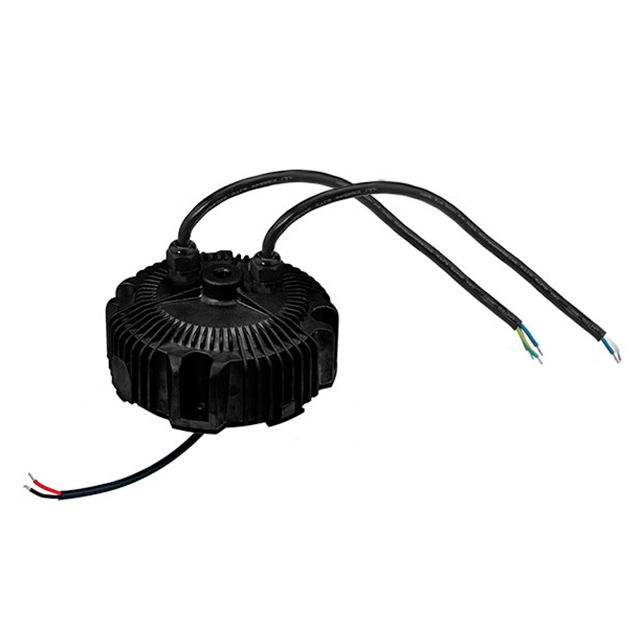

HBG-200 Series

Catalog

LED DVR CC/CV ACDC 28.8-48V 4.1A

Part	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Termination Style	Number of Outputs	Approval Agency	Topology	Ratings	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Features	Voltage - Output	Standard Number	Dimming	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
MEAN WELL USA Inc. HBG-200-48A	Chassis Mount	Constant Current Voltage	85 °C	-40 C	3750 VDC	28.8 V	48 V	90 VAC	305 VAC	197 W	4.1 A	93 %	Wire Leads	1	CB CCC CE cURus ENEC	AC DC Converter	IP65	2.62 "	5.97 in	151.7 mm	66.5 mm	OCP OTP OVP SCP

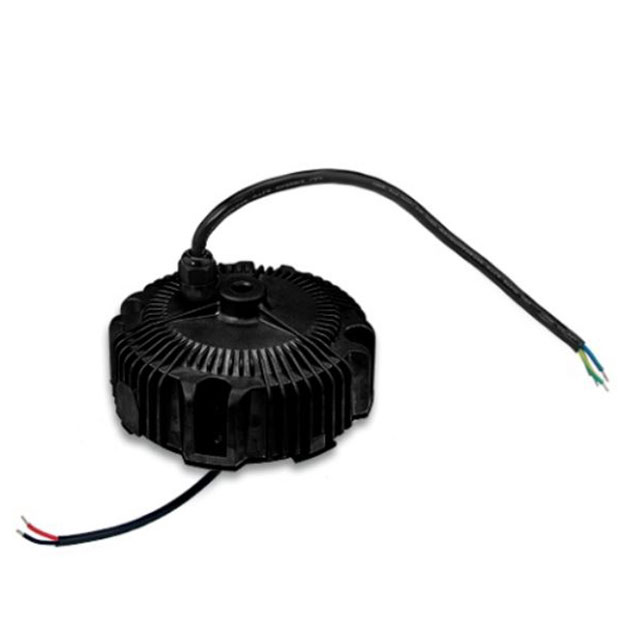

MEAN WELL USA Inc. HBG-200-60DA	Chassis Mount	Constant Current Voltage	85 °C	-40 C	3750 VDC			90 VAC	305 VAC	198 W	3.3 A	93.5 %	Wire Leads	1	CB CCC CE cURus EAC ENEC	AC DC Converter	IP67	2.62 "	5.97 in	151.7 mm	66.5 mm	OCP OTP OVP SCP	60 V	UL 8750	Analog PWM
MEAN WELL USA Inc. HBG-200-48B	Chassis Mount	Constant Current Voltage	85 °C	-40 C	3750 VDC	28.8 V	48 V	90 VAC	305 VAC	197 W	4.1 A	93 %	Wire Leads	1	CB CCC CE cURus ENEC	AC DC Converter	IP67	2.62 "	5.97 in	151.7 mm	66.5 mm	OCP OTP OVP SCP			Analog PWM
MEAN WELL USA Inc. HBG-200-60B	Chassis Mount	Constant Current Voltage	85 °C	-40 C	3750 VDC	36 V	60 V	90 VAC	305 VAC	198 W	3.3 A	93.5 %	Wire Leads	1	CB CCC CE cURus ENEC	AC DC Converter	IP67	2.62 "	5.97 in	151.7 mm	66.5 mm	OCP OTP OVP SCP			Analog PWM
MEAN WELL USA Inc. HBG-200-48AB	Chassis Mount	Constant Current Voltage	85 °C	-40 C	3750 VDC	28.8 V	48 V	90 VAC	305 VAC	197 W	4.1 A	93 %	Wire Leads	1	CB CCC CE cURus EAC ENEC RCM	AC DC Converter	IP67	2.62 "			66.5 mm	OCP OTP OVP SCP				5.2 in	132 mm	5.2 "	132 mm

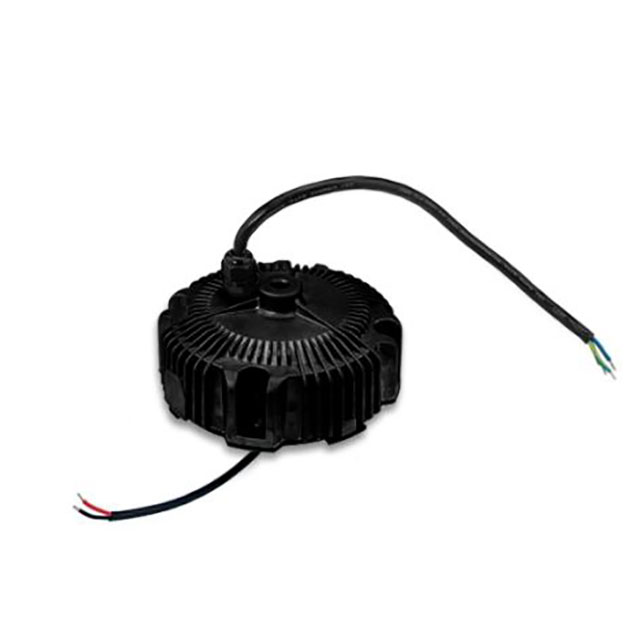

MEAN WELL USA Inc. HBG-200-48DA	Chassis Mount	Constant Current Voltage	85 °C	-40 C	3750 VDC			90 VAC	305 VAC	197 W	4.1 A	93 %	Wire Leads	1	CB CCC CE cURus EAC ENEC	AC DC Converter	IP67	2.62 "	5.97 in	151.7 mm	66.5 mm	OCP OTP OVP SCP	48 V		DALI
MEAN WELL USA Inc. HBG-200-36A	Chassis Mount	Constant Current Voltage	85 °C	-40 C	3750 VDC	21.6 V	36 V	90 VAC	305 VAC	198 W	5.5 A	92 %	Wire Leads	1	CB CCC CE cURus ENEC	AC DC Converter	IP65	2.62 "	5.97 in	151.7 mm	66.5 mm	OCP OTP OVP SCP
MEAN WELL USA Inc. HBG-200-60A	Chassis Mount	Constant Current Voltage	85 °C	-40 C	3750 VDC	36 V	60 V	90 VAC	305 VAC	198 W	3.3 A	93.5 %	Wire Leads	1	CB CCC CE cURus ENEC	AC DC Converter	IP65	2.62 "	5.97 in	151.7 mm	66.5 mm	OCP OTP OVP SCP
