400MDP1 Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER DPDT 3A 120V

Part	Mechanical Life	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Color - Actuator/Cap	Voltage Rating - AC	Actuator Type	Approval Agency	Mounting Type	Current Rating (Amps)	Termination Style	Switch Function	Circuit	Voltage Rating - DC	Actuator Marking
E-Switch 400MDP1R1BLKM61QE	30000 Steps	30000 Cycles	15.75 mm	8.89 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Black	120 V	Concave (Curved)	cULus	Right Angle Through Hole	3 A	PC Pin	On-On	DPDT	28 V	No Marking
E-Switch 400MDP1R1BLKM2QE	30000 Steps	30000 Cycles	15.75 mm	8.89 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Black	120 V	Concave (Curved)	cULus	Through Hole	3 A	PC Pin	On-On	DPDT	28 V	No Marking
E-Switch 400MDP1R1M6RE	30000 Steps	30000 Cycles	15.75 mm	8.89 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Black	20 V	Concave (Curved)	cULus	Right Angle Through Hole	0.4 VA	PC Pin	On-On	DPDT	20 V	No Marking
E-Switch 400MDP1R1M7QE	30000 Steps	30000 Cycles	15.75 mm	8.89 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Black	120 V	Concave (Curved)	cULus	Right Angle Through Hole Vertical	3 A	PC Pin	On-On	DPDT	28 V	No Marking
E-Switch 400MDP1NABLKM61QE	30000 Steps	30000 Cycles			85 °C	-30 ░C	Epoxy Sealed Terminals	Black	120 V	Concave (Curved)	cULus	Right Angle Through Hole	3 A	PC Pin	On-On	DPDT	28 V	No Marking
E-Switch 400MDP1R1BLKM7QE	30000 Steps	30000 Cycles	15.75 mm	8.89 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Black	120 V	Concave (Curved)	cULus	Right Angle Through Hole Vertical	3 A	PC Pin	On-On	DPDT	28 V	No Marking
E-Switch 400MDP1R6BLKVS2RE	30000 Steps	30000 Cycles	15.75 mm	7.11 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Black	20 V	Concave (Curved)	cULus	Through Hole	0.4 VA	PC Pin	On-On	DPDT	20 V	No Marking
E-Switch 400MDP1R1VS2QE	30000 Steps	30000 Cycles	15.75 mm	8.89 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Black	120 V	Concave (Curved)	cULus	Through Hole	3 A	PC Pin	On-On	DPDT	28 V	No Marking
E-Switch 400MDP1R1REDM7QE	30000 Steps	30000 Cycles	15.75 mm	8.89 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Red	120 V	Concave (Curved)	cULus	Right Angle Through Hole Vertical	3 A	PC Pin	On-On	DPDT	28 V	No Marking

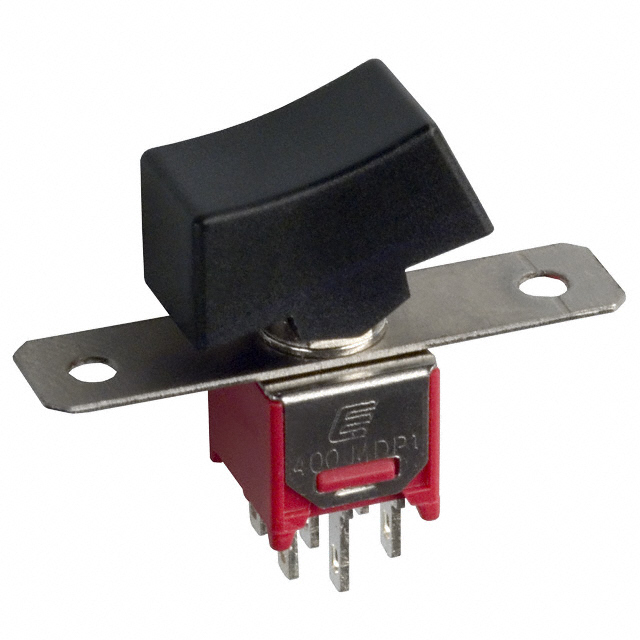

E-Switch 400MDP1R1BLKM1QE	30000 Steps	30000 Cycles	15.75 mm	8.89 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Black	120 V	Concave (Curved)	cULus	Flange Panel Mount	3 A	Solder Lug	On-On	DPDT	28 V	No Marking
