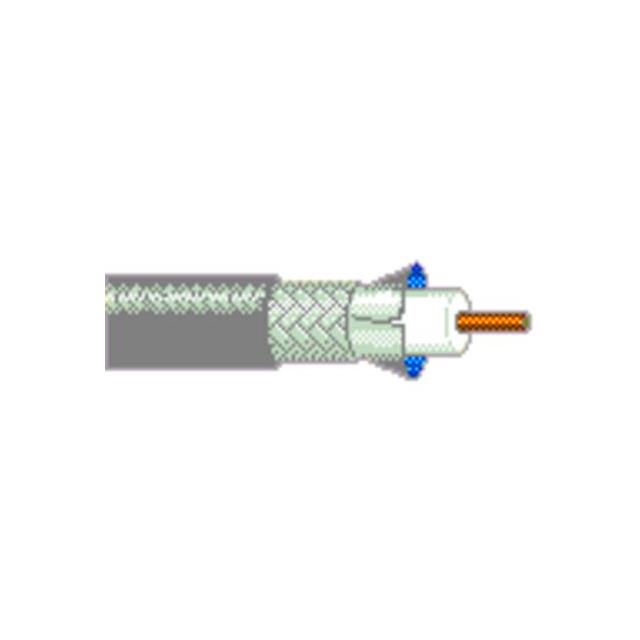

735A1 Series
Manufacturer: Belden Inc.
Beta
⌘K
#26 LDPE/FHDPE SH PVC
| Part | VoP, Velocity of Propagation | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Conductor Material | Jacket Color | Cable Group | Jacket (Insulation) Material | Cable Type | Shield Type | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 76 | Aluminum Polyester Copper Tinned | -40 C | 75 ░C | 1.96 mm | 0.077 in | 95 % 100 % | Copper Covered Silver Coated Steel | Gray | RG-59 Mini | Poly-Vinyl Chloride (PVC) | Coaxial - Riser | Braid Foil | Solid | 0.129 " | 3.28 mm | 75 Ohms | 26 AWG | 152.4 m | 500 ft |
