325-066 Series
Manufacturer: EDAC Inc.
Beta
⌘K

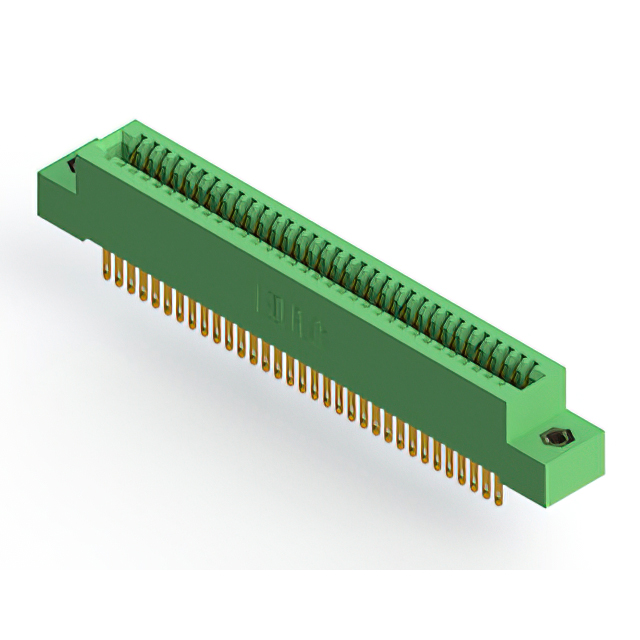

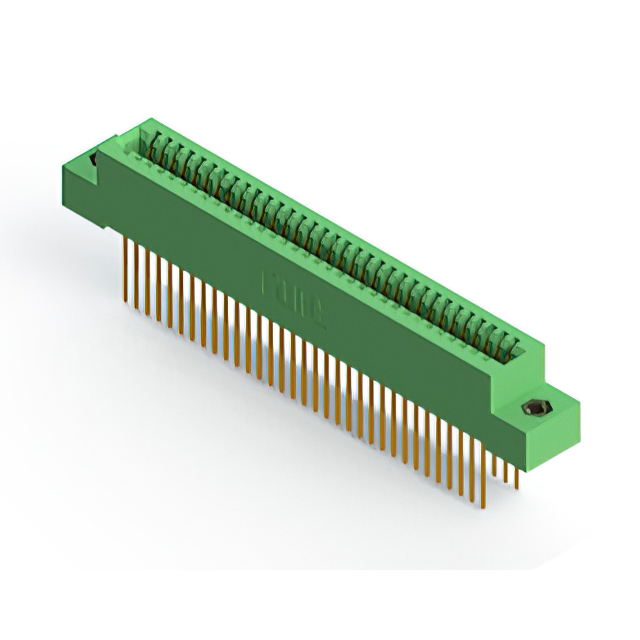

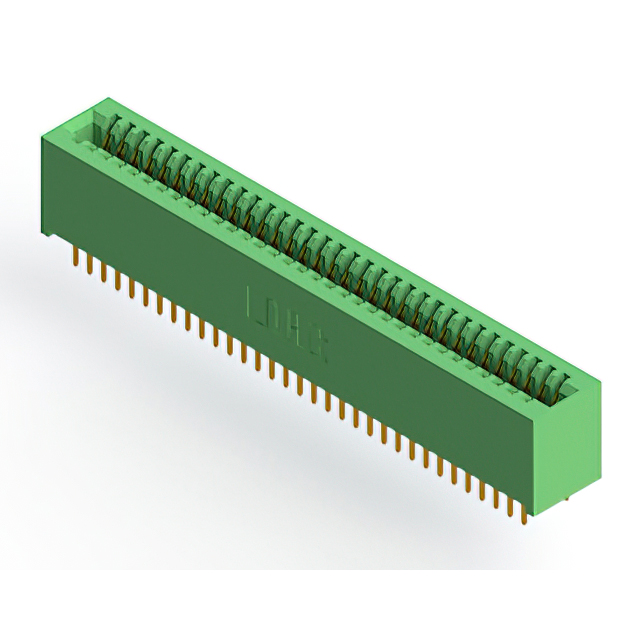

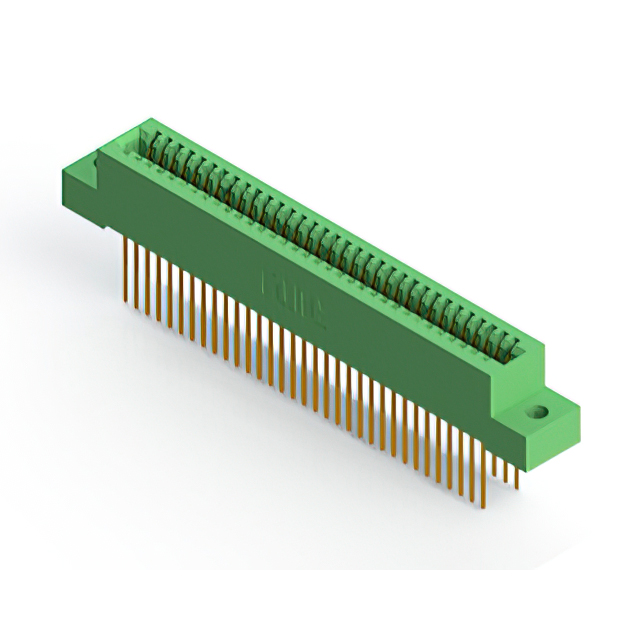

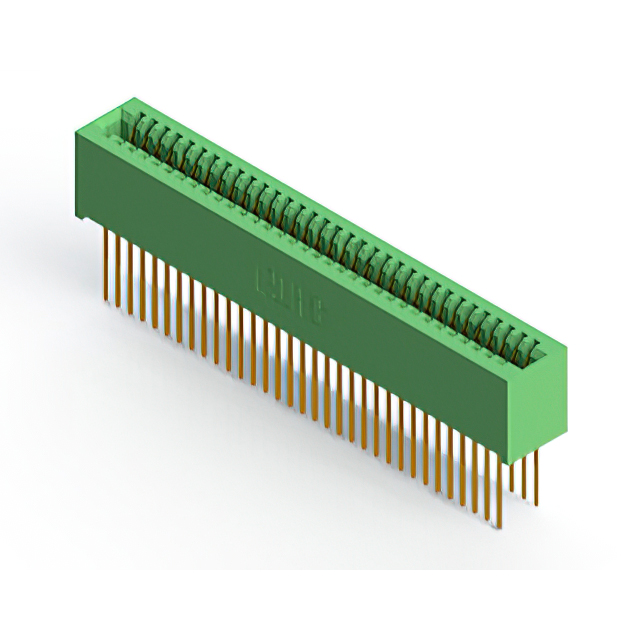

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 66 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Contact Material | Card Type | Card Thickness | Card Thickness | Mounting Type | Pitch | Pitch | Read Out | Number of Rows [custom] | Number of Positions | Number of Positions/Bay/Row | Gender | Termination | Color | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Through Hole | 0.1 " | 2.54 mm | Dual | 2 | 66 | 33 | Female | Wire Wrap | Green | Cantilever | -65 ░C | 125 °C | Gold | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Through Hole | 0.1 " | 2.54 mm | Dual | 2 | 66 | 33 | Female | Solder Eyelet(s) | Green | Cantilever | -65 ░C | 125 °C | Gold | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Through Hole | 0.1 " | 2.54 mm | Dual | 2 | 66 | 33 | Female | Solder Eyelet(s) | Green | Cantilever | -65 ░C | 125 °C | Gold | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Through Hole | 0.1 " | 2.54 mm | Dual | 2 | 66 | 33 | Female | Solder Eyelet(s) | Green | Cantilever | -65 ░C | 125 °C | Gold | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Through Hole | 0.1 " | 2.54 mm | Dual | 2 | 66 | 33 | Female | Wire Wrap | Green | Cantilever | -65 ░C | 125 °C | Gold | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Through Hole | 0.1 " | 2.54 mm | Dual | 2 | 66 | 33 | Female | Wire Wrap | Green | Cantilever | -65 ░C | 125 °C | Gold | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Through Hole | 0.1 " | 2.54 mm | Dual | 2 | 66 | 33 | Female | Solder | Green | Cantilever | -65 ░C | 125 °C | Gold | 0.25 Ám | 10 Áin | |||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Copper Alloy | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Through Hole | 0.1 " | 2.54 mm | Dual | 2 | 66 | 33 | Female | Solder | Green | Cantilever | -65 ░C | 125 °C | Gold | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening |
