YB26KK Series

Catalog

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Mechanical Life	Electrical Life	Features	Type	Switch Function	Circuit	Illumination Voltage (Nominal)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Termination Style	Actuator Marking	Actuator Type	Illumination Type, Color	Mounting Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Color - Actuator/Cap
NKK Switches YB26KKW01-5F24-JF	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Illuminated Standard	On-On	DPDT	24 V	3 A	50 °C	-25 °C	30 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	Green LED	Panel Mount Snap-In	16 mm	125 V	Clear
NKK Switches YB26KKW03-5C-JC	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Illuminated Standard	On-On	DPDT	1.9 VDC	3 A	50 °C	-25 °C	30 V	PC Pin	No Marking	Button Square	LED Red	Panel Mount Snap-In	16 mm	125 V	Clear
NKK Switches YB26KKW03	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Standard	On-On	DPDT		3 A	70 °C	-25 °C	30 V	PC Pin	No Marking	Plunger for Cap		Panel Mount Snap-In	16 mm	125 V

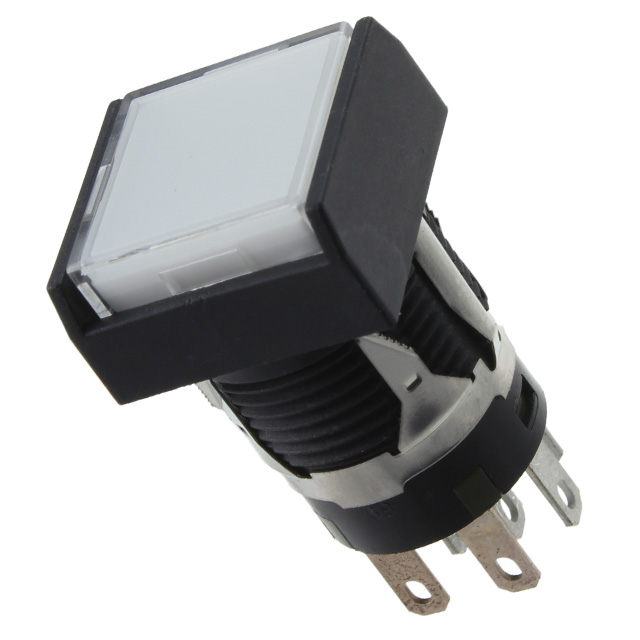

NKK Switches YB26KKW01-2CF12-JB	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Illuminated Standard	On-On	DPDT	12 VDC	3 A	50 °C	-25 °C	30 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	Green/Red LED	Panel Mount Snap-In	16 mm	125 V	Clear
NKK Switches YB26KKG01-2CF05-JB	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Illuminated Standard	On-On	DPDT	5 VDC	0.4 VA	50 °C	-25 °C	28 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	Green/Red LED	Panel Mount Snap-In	16 mm	28 V	Clear

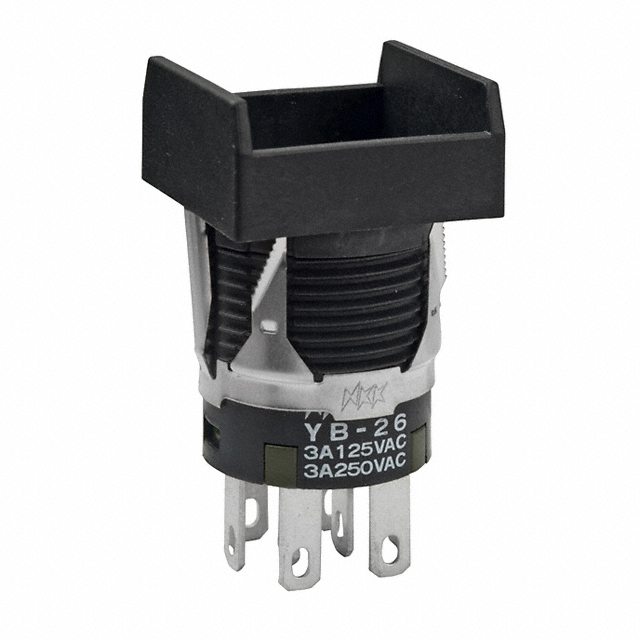

NKK Switches YB26KKW01	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Standard	On-On	DPDT		3 A	70 °C	-25 °C	30 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Plunger for Cap		Panel Mount Snap-In	16 mm	125 V
NKK Switches YB26KKG01-2CF24-JB	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Illuminated Standard	On-On	DPDT	24 V	0.4 VA	50 °C	-25 °C	28 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	Green/Red LED	Panel Mount Snap-In	16 mm	28 V	Clear
NKK Switches YB26KKG01-5F24-JF	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Illuminated Standard	On-On	DPDT	24 V	0.4 VA	50 °C	-25 °C	28 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Button Square	Green LED	Panel Mount Snap-In	16 mm	28 V	Clear
NKK Switches YB26KKG01	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Standard	On-On	DPDT		0.4 VA	70 °C	-25 °C	28 V	Solder Quick Connect - 0.110" (2.8mm)	No Marking	Plunger for Cap		Panel Mount Snap-In	16 mm	28 V
NKK Switches YB26KKW03-5C05-JB	200000 Cycles	100000 Cycles	Voltage Reduction Lighting	Illuminated Standard	On-On	DPDT	5 VDC	3 A	50 °C	-25 °C	30 V	PC Pin	No Marking	Button Square	LED Red	Panel Mount Snap-In	16 mm	125 V	Clear
