A2F1CSQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 40A 12V
| Part | Coil Power | Contact Material | Coil Resistance | Coil Voltage | Coil Current | Features | Must Operate Voltage | Contact Rating (Current) | Contact Form | Release Time | Must Release Voltage | Operate Time | Termination Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

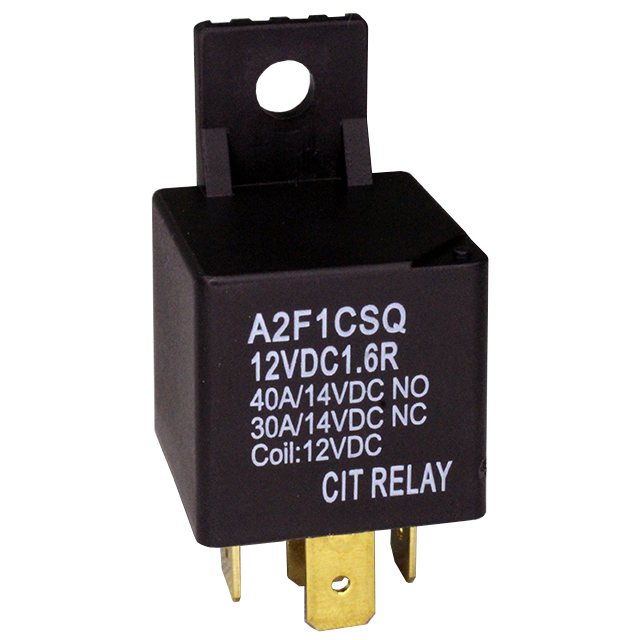

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 90 Ohms | 12 VDC | 133.3 mA | Resistor Sealed - Fully | 8.4 VDC | 40 A | SPDT (1 Form C) | 5 ms | 1.2 VDC | 7 ms | Quick Connect - 0.250" (6.3mm) | Chassis Mount | 125 °C | -40 C | 75 VDC | Non Latching |
 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 360 Ohms | 24 VDC | 66.7 mA | Sealed - Fully | 16.8 VDC | 40 A | SPDT (1 Form C) | 5 ms | 2.4 VDC | 7 ms | Quick Connect - 0.250" (6.3mm) | Chassis Mount | 125 °C | -40 C | 75 VDC | Non Latching |

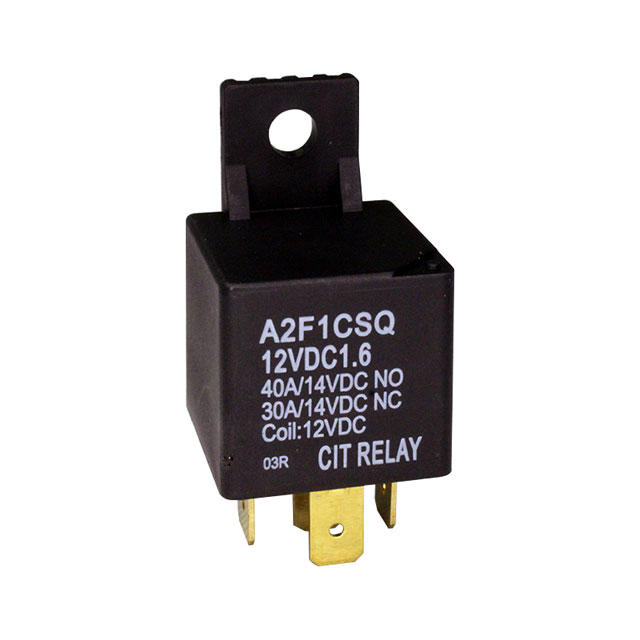

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 90 Ohms | 12 VDC | 133.3 mA | Sealed - Fully | 8.4 VDC | 40 A | SPDT (1 Form C) | 5 ms | 1.2 VDC | 7 ms | Quick Connect - 0.250" (6.3mm) | Chassis Mount | 125 °C | -40 C | 75 VDC | Non Latching |

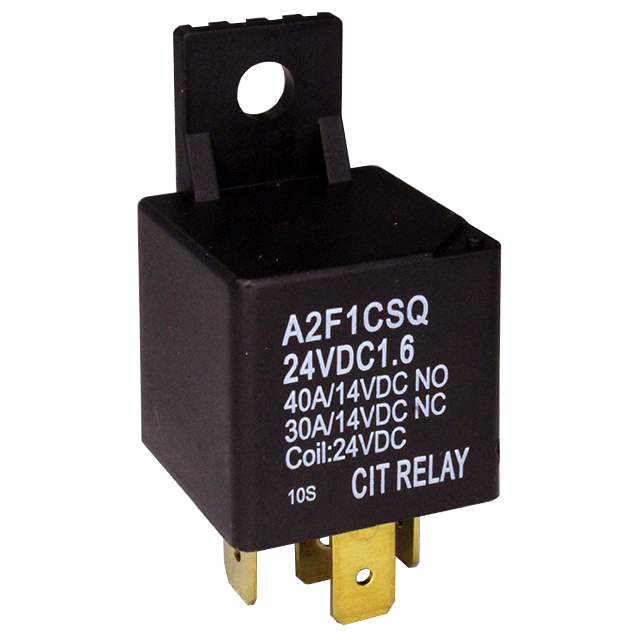

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 360 Ohms | 24 VDC | 66.7 mA | Resistor Sealed - Fully | 16.8 VDC | 40 A | SPDT (1 Form C) | 5 ms | 2.4 VDC | 7 ms | Quick Connect - 0.250" (6.3mm) | Chassis Mount | 125 °C | -40 C | 75 VDC | Non Latching |
