TT11E Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Electrical Life	Actuator Material	Voltage Rating - AC	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Voltage Rating - DC	Illumination	Bushing Thread	Switch Function	Mounting Type	Current Rating (Amps)	Features
TE Connectivity AMP Connectors TT11EGPC2T04	60000 Cycles	Brass Nickel Plated	20 V	Standard Round	PC Pin	85 °C	-30 ░C	SPDT	4.83 mm	7.52 mm	20 V	Non-Illuminated	10-48	On-Off-On	Panel Mount	0.4 VA	Epoxy Sealed Terminals
TE Connectivity AMP Connectors TT11EGPC3	60000 Cycles	Brass Nickel Plated	20 V	Standard Round	PC Pin	85 °C	-30 ░C	SPDT		9.68 mm	20 V	Non-Illuminated	Unthreaded	On-Off-On	Through Hole	0.4 VA	Epoxy Sealed Terminals
TE Connectivity AMP Connectors TT11EGPC5T1/40	60000 Cycles	Brass Nickel Plated	20 V	Standard Round	PC Pin	85 °C	-30 ░C	SPDT		5.61 mm	20 V	Non-Illuminated	Unthreaded	On-Off-On	Through Hole	0.4 VA	Epoxy Sealed Terminals
TE Connectivity AMP Connectors TT11EGPC9T1/4	60000 Cycles	Brass Nickel Plated	20 V	Standard Round	PC Pin	85 °C	-30 ░C	SPDT	6.4 mm	10.69 mm	20 V	Non-Illuminated	1/4-40	On-Off-On	Panel Mount	0.4 VA	Epoxy Sealed Terminals
TE Connectivity AMP Connectors TT11EGRA1	60000 Cycles	Brass Nickel Plated	20 V	Standard Round	PC Pin	85 °C	-30 ░C	SPDT		5.61 mm	20 V	Non-Illuminated	Unthreaded	On-Off-On	Right Angle Through Hole	0.4 VA	Epoxy Sealed Terminals

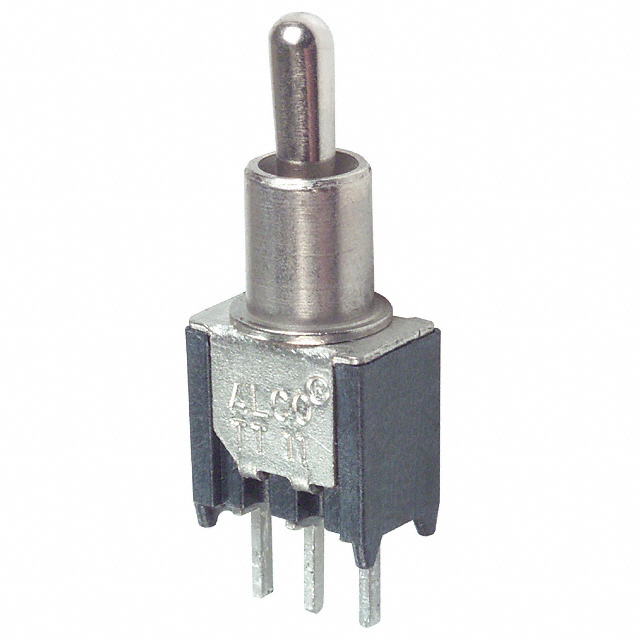

TE Connectivity AMP Connectors TT11EGPC1	60000 Cycles	Brass Nickel Plated	20 V	Standard Round	PC Pin	85 °C	-30 ░C	SPDT		5.61 mm	20 V	Non-Illuminated	Unthreaded	On-Off-On	Through Hole	0.4 VA	Epoxy Sealed Terminals
