MA-1APC Series

Catalog

INTERLOCK MAGNETIC SPST

Part	Type	Must Operate [Min]	Must Operate [Max]	Must Release [Max]	Must Release [Min]	Circuit	Voltage Rating	Approval Agency	Ingress Protection	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Actuator Type	Current Rating (Amps)
Omron Electronics Inc-EMC Div MA-1APC2	Magnetic	7 mm	12 mm	25 mm	12 mm	SPST-NC	230 VAC	CE cULus	IP67 - Dust Tight Waterproof	Cable Leads	55 °C	-10 °C	Non-Contact	2 A

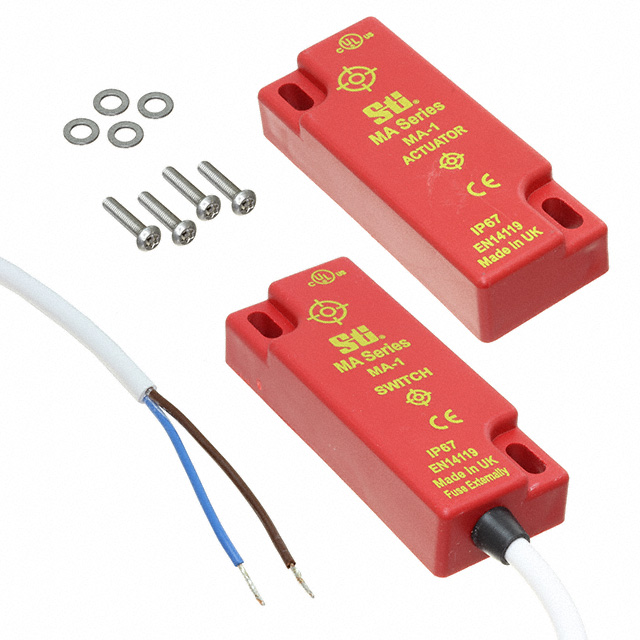

Omron Electronics Inc-EMC Div MA-1APC4	Magnetic	7 mm	12 mm	25 mm	12 mm	SPST-NC	230 VAC	CE cULus	IP67 - Dust Tight Waterproof	Cable Leads	55 °C	-10 °C	Non-Contact	2 A
Omron Electronics Inc-EMC Div MA-1APC8	Magnetic	7 mm	12 mm	25 mm	12 mm	SPST-NC	230 VAC	CE cULus	IP67 - Dust Tight Waterproof	Cable Leads	55 °C	-10 °C	Non-Contact	2 A
