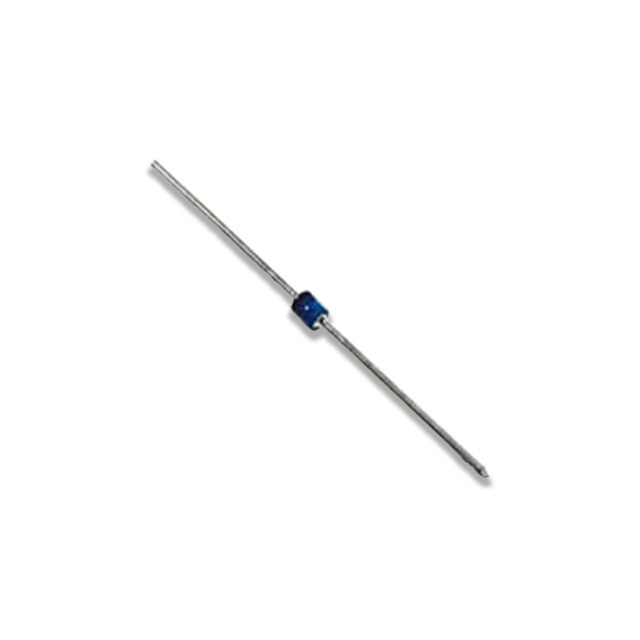

1N5811 Series

Catalog

DIODE SWITCHING 150V 6A 2-PIN T/R/TRAY

Part	Reverse Recovery Time (trr)	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Grade	Speed	Current - Average Rectified (Io)	Capacitance @ Vr, F	Package / Case	Qualification	Current - Reverse Leakage @ Vr	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Semtech Corporation JANTXV1N5811US	30 ns	Surface Mount	Standard	875 mV	Military	200 mA 500 ns	6 A	60 pF	SQ-MELF	MIL-PRF-19500/477	5 µA
Semtech Corporation JANTX1N5811US	30 ns	Surface Mount	Standard	875 mV	Military	200 mA 500 ns	6 A	60 pF	SQ-MELF	MIL-PRF-19500/477	5 µA
Semtech Corporation 1N5811	30 ns	Through Hole	Standard	875 mV		200 mA 500 ns	6 A	60 pF	Axial		5 µA	Axial
Semtech Corporation 1N5811C.TR	30 ns	Through Hole	Standard	875 mV		200 mA 500 ns	6 A	60 pF	Axial		5 µA	Axial	175 ░C	-65 C
Semtech Corporation JANTXV1N5811	30 ns	Through Hole	Standard	875 mV	Military	200 mA 500 ns	6 A	60 pF	Axial	MIL-PRF-19500/477	5 µA	Axial
Semtech Corporation JAN1N5811US
