6609074 Series

Catalog

LINE FILTER 80VDC 100A CHASSIS

Part	Configuration	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Filter Type	Applications	Voltage - Rated DC	Current	Inductance

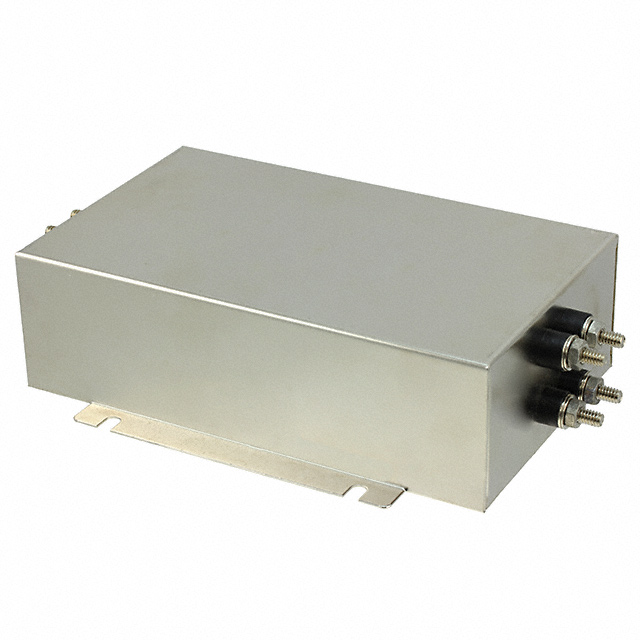

TE Connectivity Corcom Filters 6609074-7	Single Stage	CSA TUV UR	55 °C	-10 °C	Chassis Mount	Threaded Post (1/4-20)	DC	General Purpose	80 V	100 A
TE Connectivity Corcom Filters 6609074-1	Single Stage	CSA TUV UR	55 °C	-10 °C	Chassis Mount	Threaded Post (10-32)	DC	General Purpose	80 V	15 A	451 µH
TE Connectivity Corcom Filters 3-6609074-4	Single Stage	CSA TUV UL	55 °C	-10 °C	Chassis Mount	Threaded Post (1/4-20)	DC	General Purpose	80 V	100 A
TE Connectivity Corcom Filters 6609074-3	Single Stage	CSA TUV UR	55 °C	-10 °C	Chassis Mount	Threaded Post (10-32)	DC	General Purpose	80 V	30 A	701 µH
