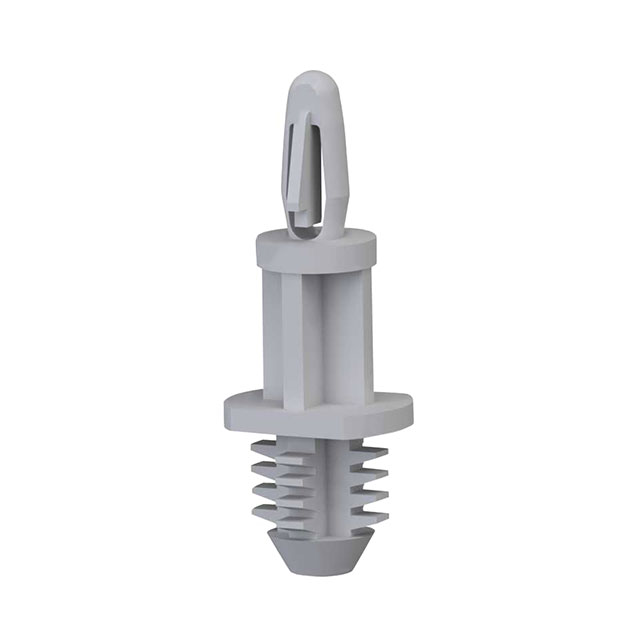

BHL-12 Series
Manufacturer: Essentra Components
Beta
⌘K
BRD SPT SNAP LOCK BARBED 3/4"
| Part | Between Board Height | Between Board Height | Between Board Height | Material | Features | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Mounting Type | Support Hole Diameter | Support Hole Diameter | Support Hole Diameter | Holding Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 19.05 mm | 0.75 " | 0.75 " | Nylon | Blind Hole Mating | 1.57 mm | 0.062 in | 0.0625 in | 1/4 | 0.25 in | 6.35 mm | 0.3125 in | 0.312 in | 7.92 mm | 38 mm | 1.496 in | Barbed Fastener | 3.96 mm | 5 32" | 0.156 in | Snap Lock |
