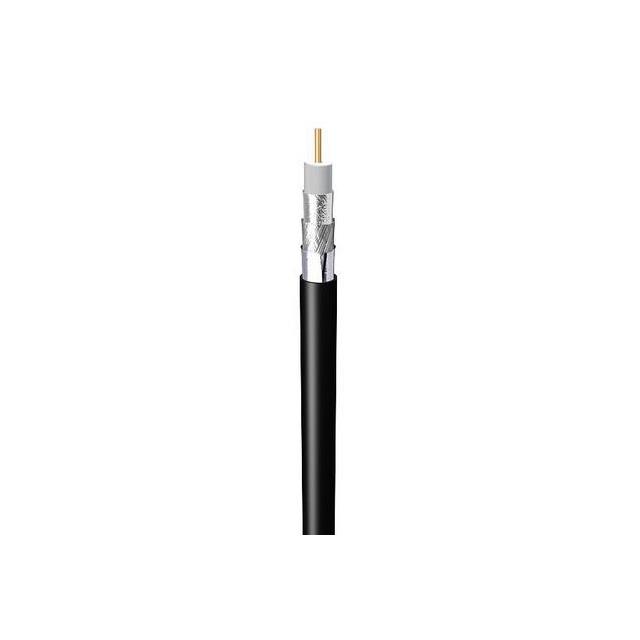

7915A Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX 75 OHM RG6 18AWG
| Part | Shield Material | Conductor Material | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Cable Group | Conductor Strand | Shield Type | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Impedance | Length [x] | Length [x] | Jacket Color | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | Copper Bare | 77 % 100 % | 0.18 in | 4.57 mm | Foam Polyethylene (FPE) | 80 °C | -40 C | 83 | RG-6 | Solid | Braid Foil | Coaxial | Poly-Vinyl Chloride (PVC) | 6.99 mm | 0.275 in | 75 Ohms | 304.8 m | 1000 ft | Black | 18 AWG |
