CLS-TS11 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
SWITCH TOGGLE SPST 25A 12V
| Part | Mounting Type | Termination Style | Voltage Rating - DC | Actuator Type | Illumination Voltage (Nominal) | Circuit | Illumination Type, Color | Current Rating (Amps) | Switch Function | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

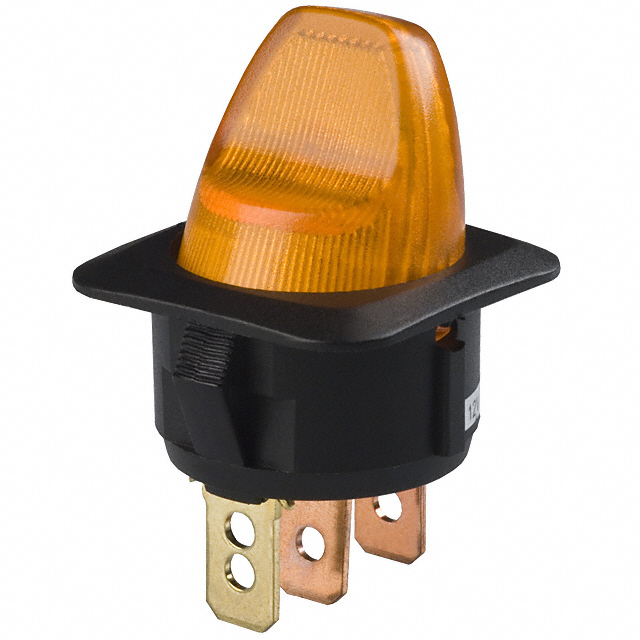

 Lumex Opto/Components Inc. | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 12 V | Flatted | 12 VDC | SPST | LED Yellow | 25 A | On-Off | 17 mm | 24 mm | Illuminated |

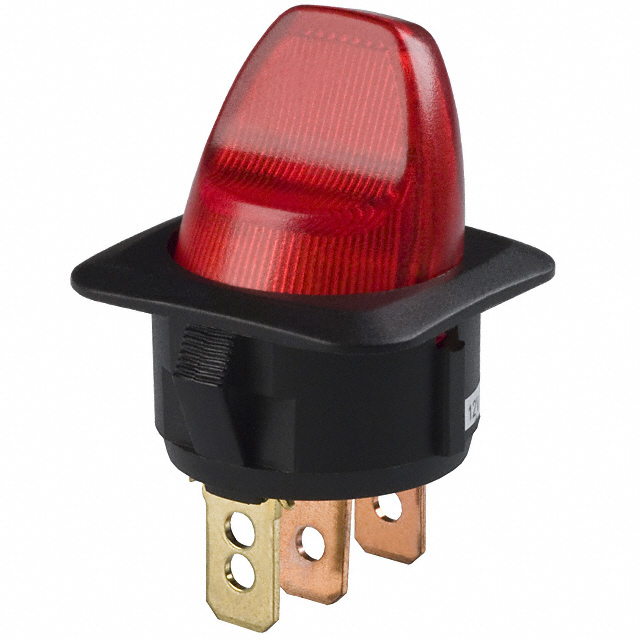

 Lumex Opto/Components Inc. | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 12 V | Flatted | 12 VDC | SPST | LED Red | 25 A | On-Off | 17 mm | 24 mm | Illuminated |

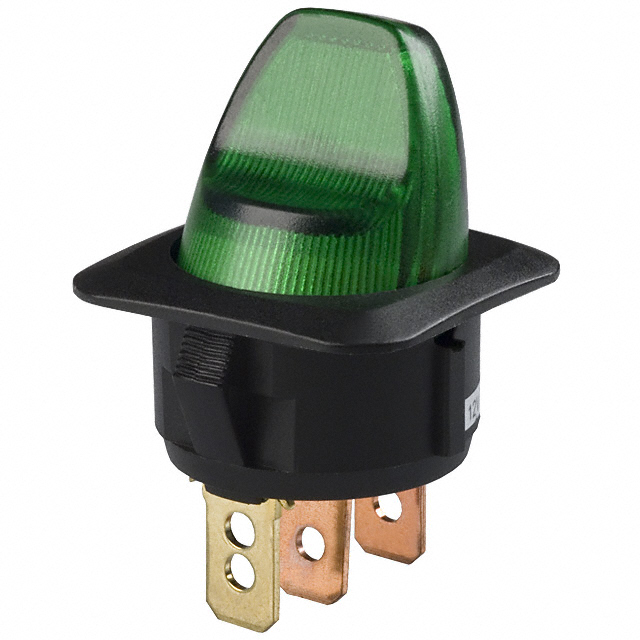

 Lumex Opto/Components Inc. | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 12 V | Flatted | 12 VDC | SPST | Green LED | 25 A | On-Off | 17 mm | 24 mm | Illuminated |

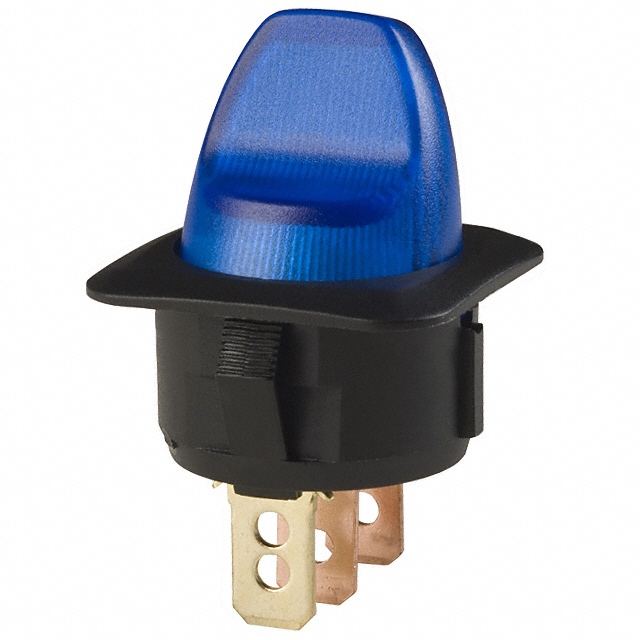

 Lumex Opto/Components Inc. | Panel Mount Snap-In | Quick Connect - 0.250" (6.3mm) | 12 V | Flatted | 12 VDC | SPST | Blue LED | 25 A | On-Off | 17 mm | 24 mm | Illuminated |
