2X06G00SB Series
Manufacturer: Oupiin
Beta
⌘K

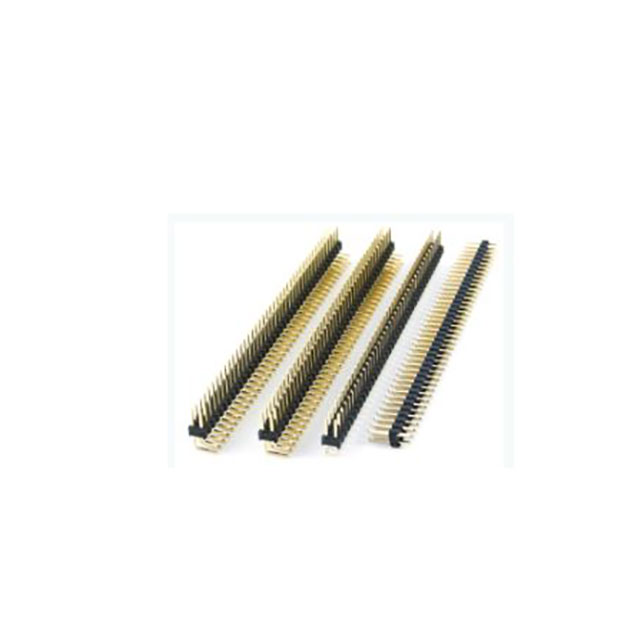

PIN HEADER, DUAL ROW, 3 PIN PER
| Part | Contact Finish - Post | Number of Positions | Insulation Material | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Shrouding | Connector Type | Current Rating (Amps) | Material Flammability Rating | Contact Material | Contact Finish - Mating | Contact Shape | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Termination | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Overall Contact Length [x] | Overall Contact Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions Loaded | Contact Length - Mating [x] | Contact Length - Mating [x] | Mounting Type | Contact Finish Thickness - Mating | Fastening Type | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Gold | 12 | Glass Filled Polybutylene Terephthalate (PBT) Polyester Thermoplastic | 0.098 " | 2.5 mm | 0.118 in | 3 mm | Unshrouded | Header Header Cuttable | 2 A | UL94 V-0 | Brass Copper Alloy | Gold | Square | 0.1 " | 2.54 mm | 2 | Solder | Black | 0.1 in | 2.54 mm | 11.61 mm | 0.457 in | -40 C | 105 ░C | Male Pin | All | 0.24 in | 6.1 mm | Through Hole | Flash | Push-Pull | 11.6 mm | 0.457 in |
